99 00... Separate components/paintwork

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

Inside mirror

Fig 1: Identifying Inside Mirror Paint Area
G06897791Courtesy of BMW OF NORTH AMERICA, INC.

Outer door handle

Area specification applies to all paint stages.

Fig 2: Identifying Outer Door Handle Paint Area
G08531380Courtesy of BMW OF NORTH AMERICA, INC.

Roof

Area specification applies to all paint stages.

Fig 3: Identifying Roof Paint Area
G08531381Courtesy of BMW OF NORTH AMERICA, INC.

Trim strip on roof frame

Area specification applies to all paint stages.

Fig 4: Identifying Trim Strip On Roof Frame Paint Area
G08531382Courtesy of BMW OF NORTH AMERICA, INC.

Cover on roof pillar

Area specification applies to all paint stages.

Fig 5: Identifying Roof Pillar Cover Paint Area
G08531383Courtesy of BMW OF NORTH AMERICA, INC.

Tail panel

Area specification applies to all paint stages.

Fig 6: Identifying Tail Panel Paint Area
G08531384Courtesy of BMW OF NORTH AMERICA, INC.

Side wall, front

Area specification applies to all paint stages.

Fig 7: Identifying Front Side Wall Paint Area
G08531385Courtesy of BMW OF NORTH AMERICA, INC.

Side wall, front

Vehicles from 03 2010

Area specification applies to all paint stages.

Fig 8: Identifying Front Side Wall Paint Area
G08531386Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stage 1.

Fig 9: Identifying Front Door Paint Area - Stage 1
G08531387Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stages 2 and 3.

Fig 10: Identifying Front Door Paint Area - Stage 2 And 3
G08531388Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Additional area specification inner panel for paint stages 2 and 3.

Fig 11: Identifying Front Door Inner Panel Paint Area - Stage 2 And 3
G06897799Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stage 1.

Fig 12: Identifying Rear Door Paint Area - Stage 1
G08531390Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stages 2 and 3.

Fig 13: Identifying Rear Door Paint Area - Stage 2 And 3
G08531391Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Additional area specification inner panel for paint stages 2 and 3.

Fig 14: Identifying Rear Door Inner Panel Paint Area - Stages 2 And 3
G08531392Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid

Area specification applies to all paint stages.

Additionally complete inner panel for paint stages 2 and 3.

Fig 15: Identifying Engine Compartment Lid Paint Area - Stages 2 And 3
G08531393Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Area specification applies to paint stage 1.

Fig 16: Identifying Tailgate Paint Area - Stages 1
G08531394Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Area specification applies to paint stages 2 and 3.

Fig 17: Identifying Tailgate Paint Area - Stages 2 And 3
G08531395Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Additional area specification inner panel for paint stages 2 and 3.

Fig 18: Identifying Tailgate Inner Panel Paint Area - Stages 2 And 3
G08531396Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate  bottom

Area specification applies to all paint stages.

Fig 19: Identifying Tailgate Bottom Paint Area
G08531397Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate  bottom

Additional area specification inner panel for paint stages 2 and 3.

Fig 20: Identifying Tailgate Bottom Paint Area - Stages 2 And 3
G08531398Courtesy of BMW OF NORTH AMERICA, INC.

Rear spoiler for tailgate

Area specification applies to all paint stages.

Fig 21: Identifying Rear Spoiler For Tailgate Paint Area
G08531399Courtesy of BMW OF NORTH AMERICA, INC.

Flap for fuel filler neck

Area specification applies to all paint stages.

Additionally with inner panel for paint stages 2 and 3.

Fig 22: Identifying Flap For Fuel Filler Neck Paint Area
G06897807Courtesy of BMW OF NORTH AMERICA, INC.

Cover, air duct, bottom  left or right

Vehicles up to 02 2010

Area specification applies to all paint stages.

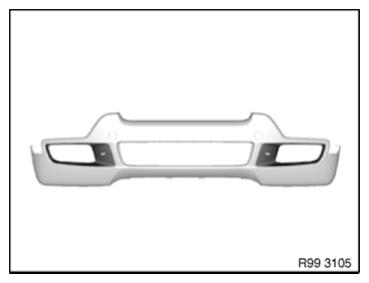

Fig 23: Identifying Air Duct Cover (Bottom) Paint Area - Left/Right
G08531401Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, front

Vehicles from 03 2010

Area specification applies to all paint stages.

Fig 24: Identifying Front Bumper Trim Panel Paint Area
G08531402Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, rear  left or right

Vehicles up to 02 2010

Area specification applies to all paint stages.

Fig 25: Identifying Front Bumper Trim Panel Paint Area
G08531403Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, rear

Vehicles from 03 2010

Area specification applies to all paint stages.

Fig 26: Identifying Rear Bumper Trim Panel Paint Area
G08531404Courtesy of BMW OF NORTH AMERICA, INC.
