99 00... Miscellaneous painting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

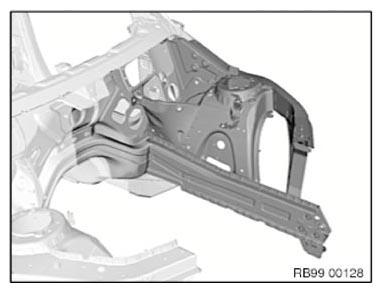

Fig 1: Identifying Engine Compartment Paintwork Area

G09950378

Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

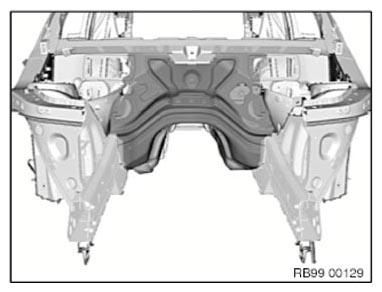

Fig 2: Identifying Engine Bulkhead Paintwork Area

G09950379

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

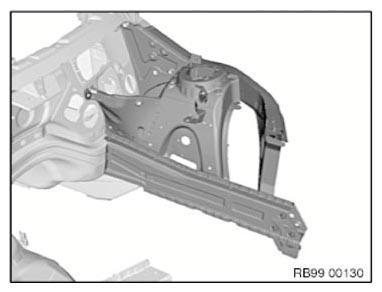

Fig 3: Identifying Wheel Arch Complete (Front) Paintwork Area - Inner Side Shown

G09950380

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

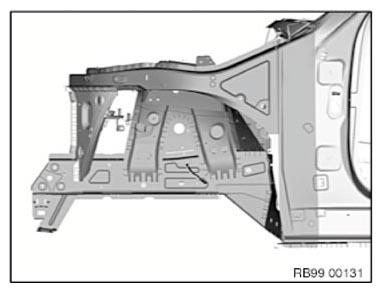

Fig 4: Identifying Wheel Arch Complete (Front) Paintwork Area - Outer Side Shown

G09950381

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor

Carry over the area shown symmetrically to the other side of the car.

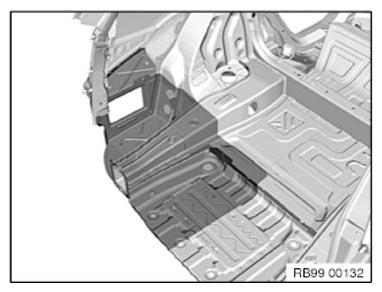

Fig 5: Identifying Luggage Compartment Floor Paintwork Area

G09950382

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, rear

Carry over the area shown symmetrically to the other side of the car.

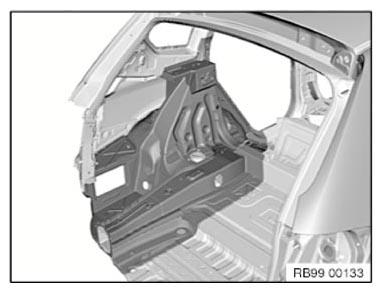

Fig 6: Identifying Wheel Arch (Rear) Paintwork Area

G09950383

Courtesy of BMW OF NORTH AMERICA, INC.
