Working on Electronic Components

The following requirements must be observed when working on electronic components on the Car Information Computer.

• The work must be performed on a conductive and grounded workbench (special tool 12 7 192 is used for this purpose).
• The grounding cable must be connected to a secure grounding point (water pipe, heating pipe, electric socket ground).
• The person carrying out the work must first put on the grounding cuff in order to ground himself before removing the components from the packaging.
• The electronic components are placed on the anti-static mat which is also connected to a grounding cable.

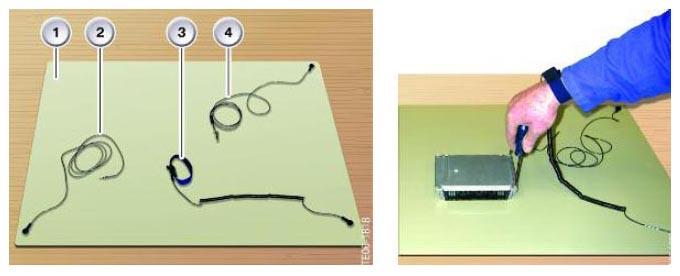

  Fig 1: Identifying Anti-Static Mat Special Tool 12 7 192

  Courtesy of BMW OF NORTH AMERICA, INC.
