41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Dimension tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the set of attachments.

The specified dimensions/measurements refer to the center point of the bore/screw.

Under Body View 1

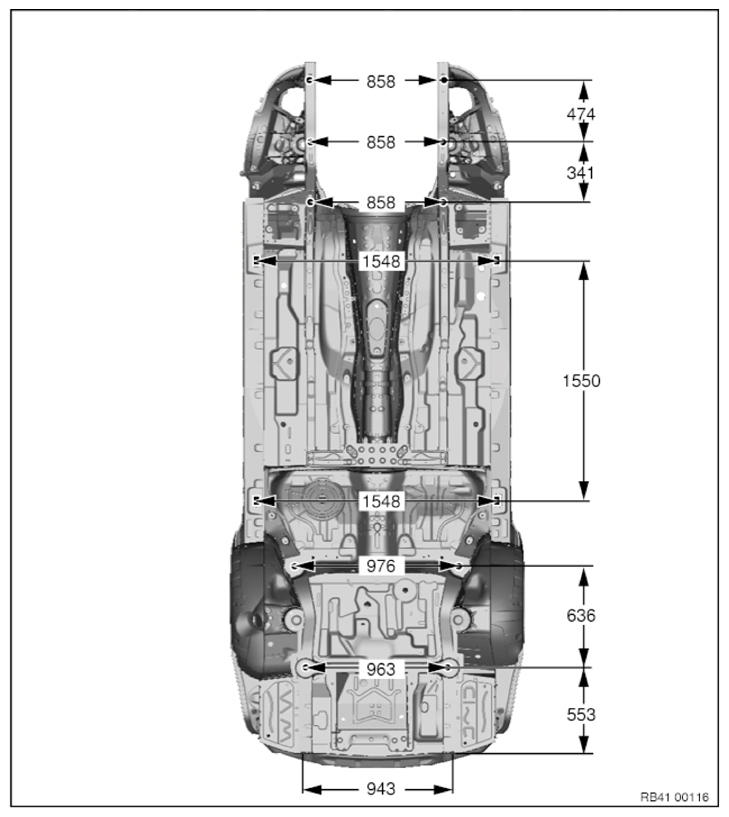

Fig 1: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Under Body View 1)

G09915763

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

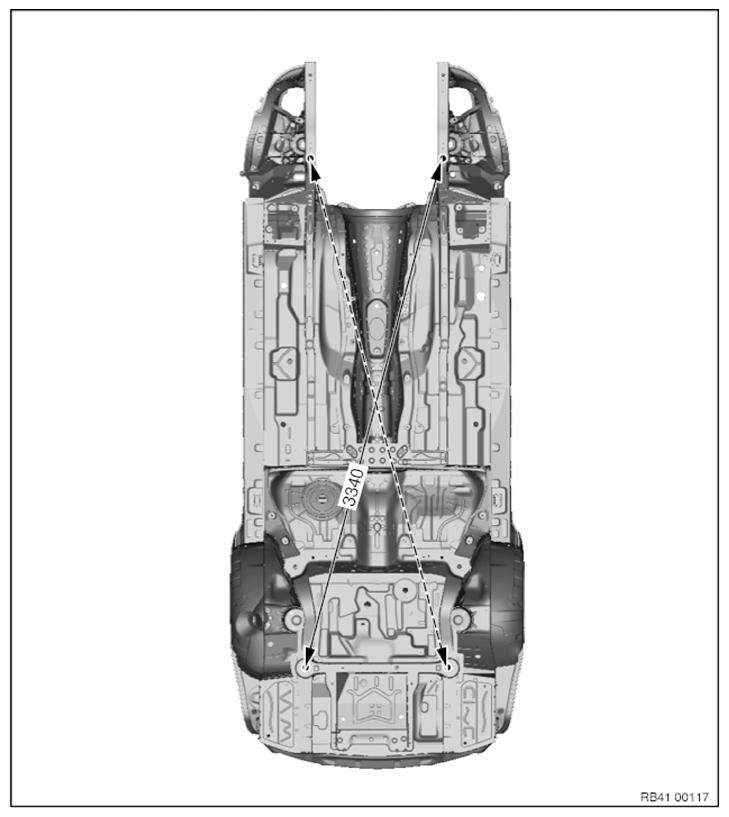

Fig 2: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Underbody View 2)

G09915764

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

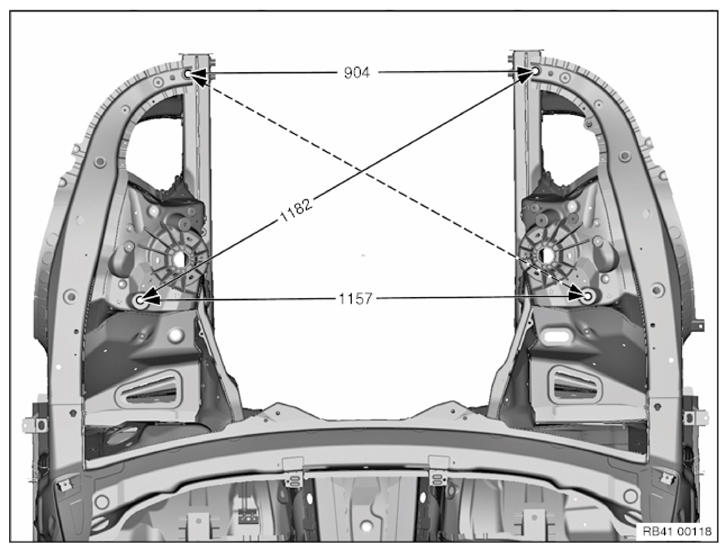

Fig 3: Engine Compartment Frame Alignment Control Body Dimensions And Measurement Points (Top View, Front End)

G09915765

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

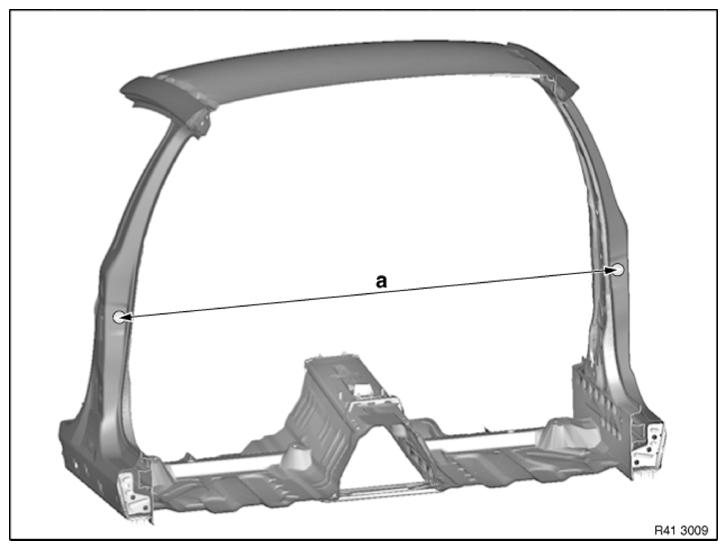

View, B-Pillar

G09915766

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1566 mm between screw-on points of door brakes.

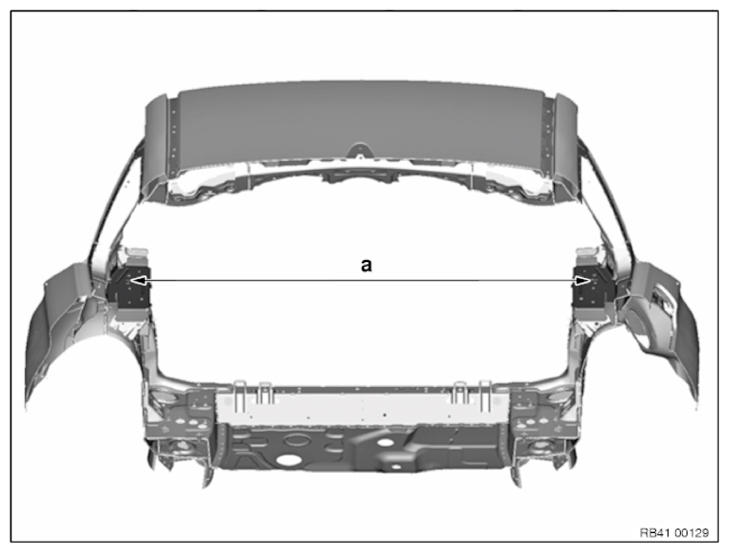

View C-pillar (Touring only)

G09915767

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1290 mm between attachment points of inertia reel.
