61 13... Circular connector, 7-pin, 8-pin, system D2.5

Special tools required:

• 61 0 303

Carefully pull off rubber grommet (1).

Carefully press back retaining lugs (2) of internal connector (3).

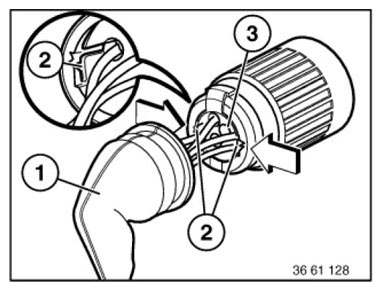

Fig 1: Pressing Retaining Lugs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide internal connector (3) in direction of arrow until retaining lugs (2) lock into locking groove (4).

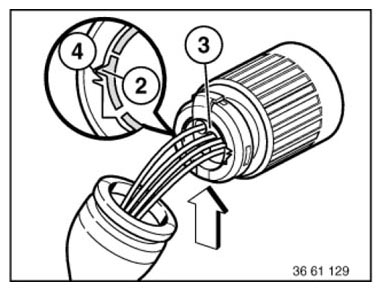

Fig 2: Sliding Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 61 0 303 (61 1 132) to press back retaining hook (5) of corresponding contact and pull out cable with contact.

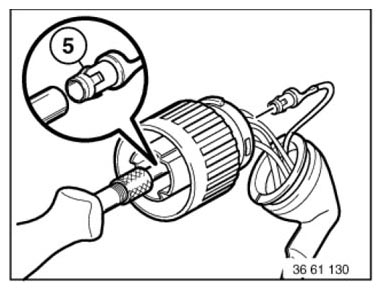

Fig 3: Pressing Retaining Hook Of Corresponding Contact Using Special Tool
