61 13... Circular connectors, 4-, 7-, 10- 12-, 25-pin, System D1.5/D2.5

Special tools required:

• 61 0 303

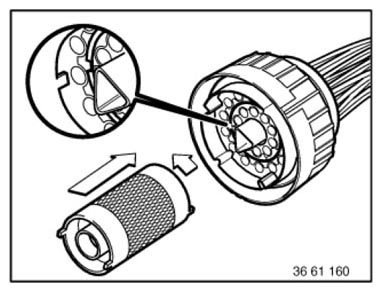

Insert special tool with suitable connection side in connector and twist approx. 3° anticlockwise.

Fig 1: Inserting Special Tool Into Connector

Courtesy of BMW OF NORTH AMERICA, INC.

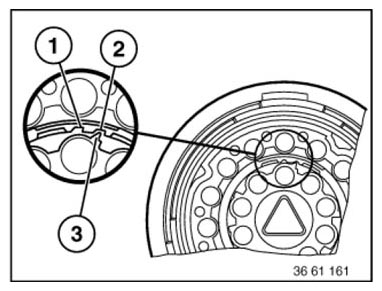

The connector is locked down if retaining lug (3) is located in locking groove (2).

1. Unlocking groove
2. Locking groove
3. Retaining lug
   Fig 2: Identifying Unlocking Groove, Locking Groove And Retaining Lug

   Courtesy of BMW OF NORTH AMERICA, INC.

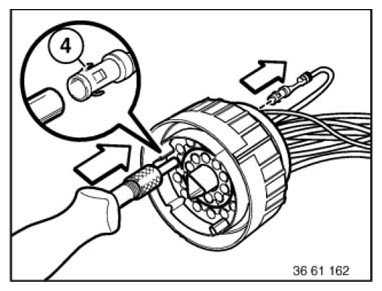

With special tool 61 0 303 , press down retaining hook (4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Down Retaining Hook Of Corresponding Contact Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
