61 13... In-line plugs, 20-pin, System D2.5

Special tools required:

• 61 0 303

Pull locking slide (1) out of connector (2).

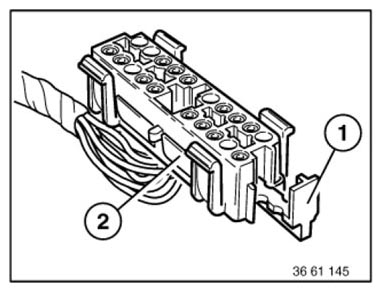

Fig 1: Identifying Locking Slide And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 303 press back retaining hook(3) of corresponding contact and pull out cable with contact.

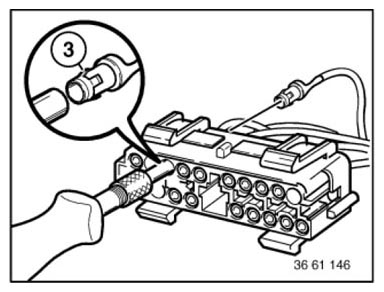

Fig 2: Pressing Retaining Hook Of Corresponding Contact Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
