61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

Manufactured by AMP:  The following contact types without strand sealing can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing, 5-pin (Hybrid System MQS/MPQ)

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 1: Pulling Off Fastener From Contact Carrier (Socket Housing, 5-Pin, Hybrid System MQS/MPQ)

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing, 8-pin (MQS):

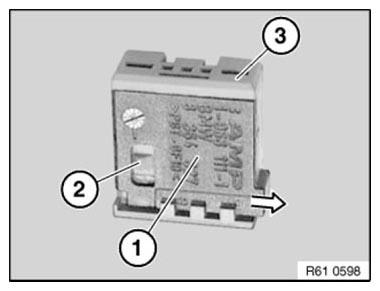

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 2: Pulling Off Fastener From Contact Carrier (Socket Housing, 8-Pin, MQS)

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Pulling Wire With Socket Contact From 8-Pin Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Pulling Out Wire With Socket Contact From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
