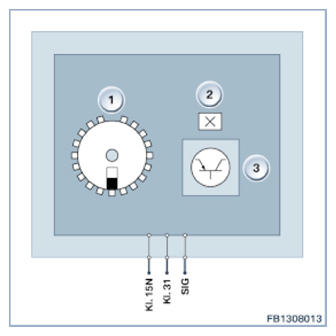

Structure and inner electrical connection
The measuring procedure is based on Hall IC. The hall effect sensor is magnetically pre-tensioned by means of a permanent magnet. The Hall integrated circuit supplies an output voltage that is proportional to the magnetic field.
| Index | Explanation |
|---|---|
| 1 | Increment wheel |
| 2 | Hall effect sensor |
| 3 | Evaluation electronics |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Kl. 15N | Terminal 15N, supply voltage |
| Kl. 31 | Terminal 31, GND |
| SIG | Signal line |
