System overview

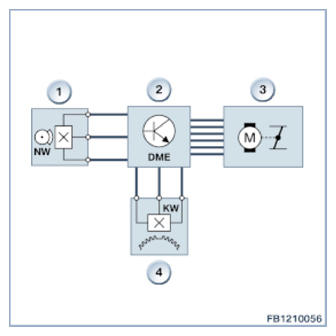

Fig 1: Idle Control - Circuit Diagram
G09872648Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Camshaft sensor, intake camshaft
2 Digital engine electronics (DME)
3 Electric throttle valve actuator
4 Crankshaft sensor
