Test Images, Remote Key Insertion

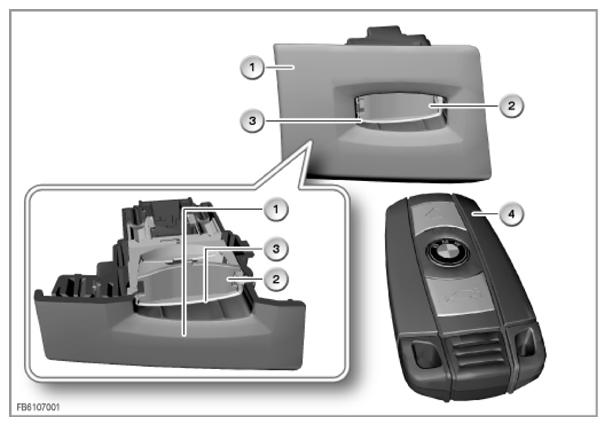

Fig 1: Identifying Insertion Slot (With No Damage)
G09895182Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Insertion slot cover
2 Sealing flap cover
3 Close sealing flap and plug-in unit so that they are flush.
4 Remote key

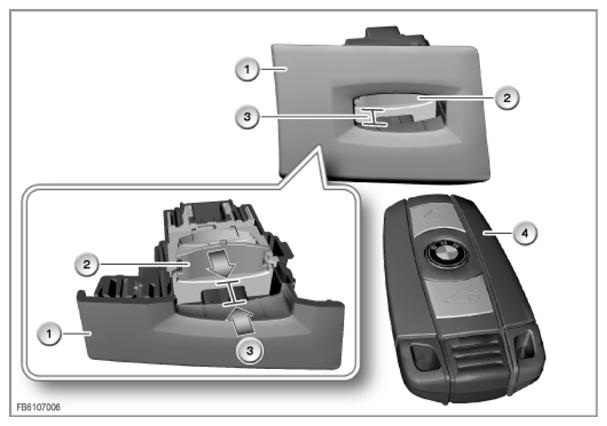

Fig 2: Removing Remote Key
G09895183Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Insertion slot cover
2 Sealing flap cover
3 Gap between sealing flap and plug-in module
4 Remote key

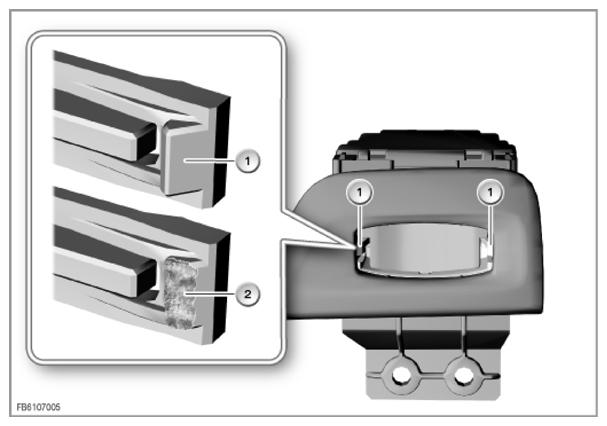

Fig 3: Identifying Broken Retaining Lug
G09895184Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Undamaged retaining lug
2 Broken retaining lug
