Mechatronics Module

The mechatronics module integrated into the M DCT transmission housing consists of the M DCT electronics and the M DCT hydraulic components.

The selector rod position sensors are mounted directly on the M DCT electronics. The speed sensors for inner input shafts 1 and 2 are integrated in the upper position sensors.

The parking lock sensors are integrated in the second position sensor from the bottom.

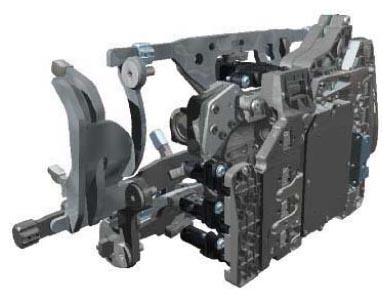

Fig 1: Identifying M DCT Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.

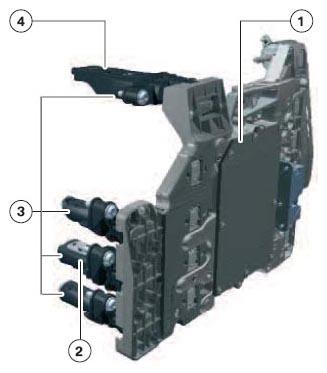

Fig 2: Identifying M DCT Electronic Components

Courtesy of BMW OF NORTH AMERICA, INC.

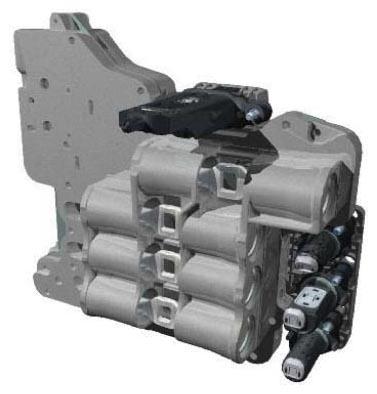

Fig 3: Identifying M DCT Hydraulic Components

Courtesy of BMW OF NORTH AMERICA, INC.

The eight individual gears are engaged by four hydraulic cylinders and four individual selector rods. The selector rod positions are detected without the need for direct contact with the use of the selector rod position sensors.

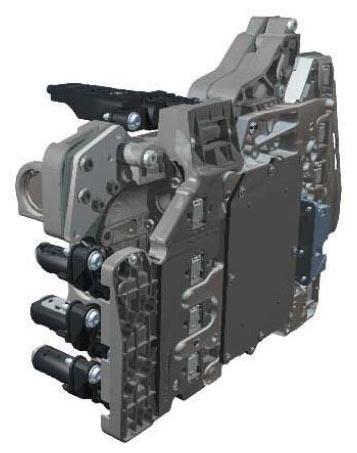

Fig 4: View Of Selector Rod Side Of M DCT Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.

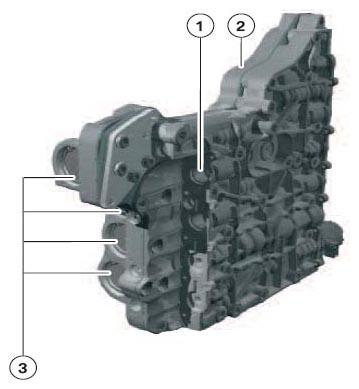

Fig 5: Identifying M DCT Mechatronics Module With Selector Rods
