Pin housing

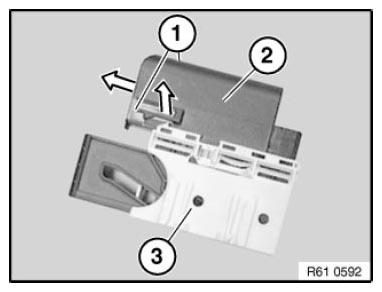

Press locks (1) on cap (2) upwards on both sides.

Detach cap from housing carrier (3).

NOTE: Detaching the cap releases the secondary locks of the pin contacts in the contact carriers.

Fig 1: Pressing Locks On Cap Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

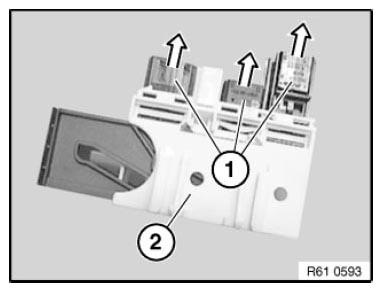

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".

Fig 2: Pulling Contact Carrier Out Of Housing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
