Removing MPQ contacts from contact carrier

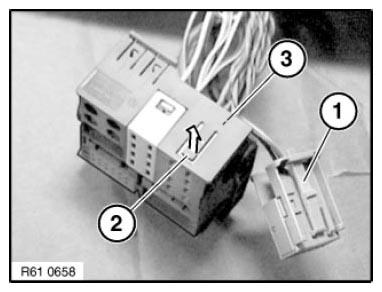

Remove contact carrier (1) with MQS contacts from the radio plug.

Raise lock (2) on radio plug.

Remove contact carrier (3) from radio plug.

Fig 1: Raising Lock On Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

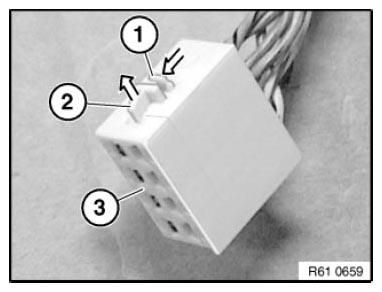

Press lock (1) in direction of arrow.

Pull secondary lock (2) in the direction of the arrow and out of contact carrier (3) completely.

Fig 2: Pulling Secondary Lock Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

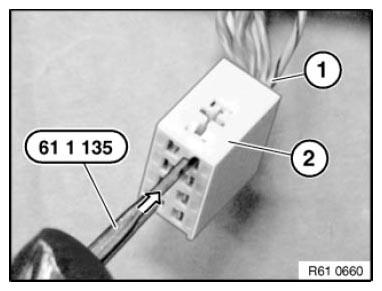

Press special tool 61 1 135 against inside of contact in contact carrier (2).

Remove wire with female contact (1) from contact carrier (2).

Fig 3: Removing Wire With Female Contact From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
