Procedure For Using Universal Reinforcement Plate

The universal reinforcement plate needs to be adapted. The plate must be divided if the distance between the pins is too great.

Dimension a is between 40 and 80 mm depending on the space available.

Secure plates with N4 punch rivets.

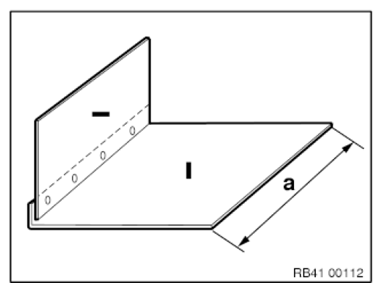

Fig 1: Identifying Universal Reinforcement Plate Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
