DME Control Module X60002 Connector End View

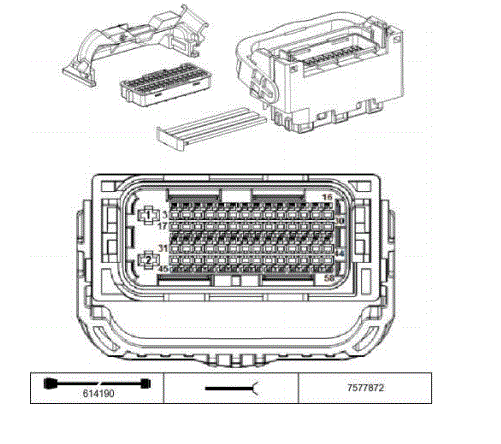

G00596542Courtesy of BMW OF NORTH AMERICA, INC.

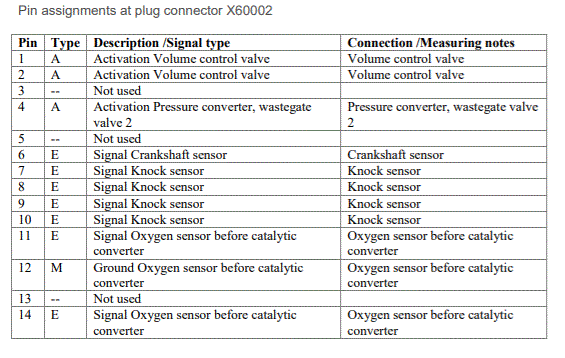

G00596548Courtesy of BMW OF NORTH AMERICA, INC.

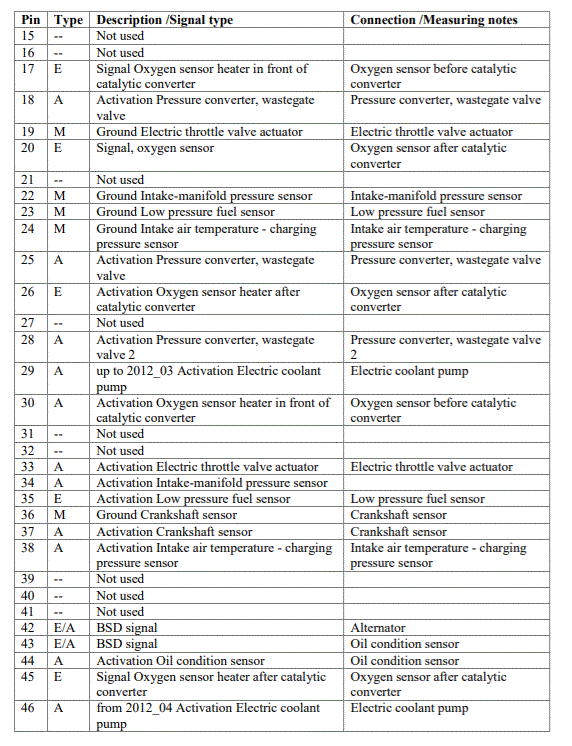

G00596549Courtesy of BMW OF NORTH AMERICA, INC.

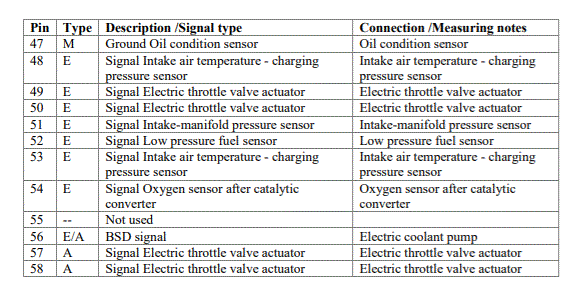

G00596550Courtesy of BMW OF NORTH AMERICA, INC.
