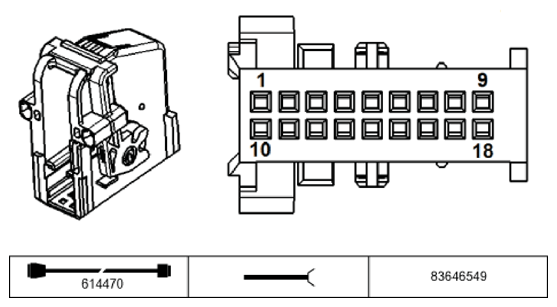

Instrument Cluster Control Module X16 Connector End View
Pin Assignments At Plug Connector X16
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | - | Not occupied | |
| 2 | - | Not occupied | |
| 3 | - | Not occupied | |
| 4 | A | Power supply, outside temperature sensor | Outside temperature sensor |
| 5 | E | Signal, outside temperature sensor | Outside temperature sensor |
| 6 | E/A | CAN bus high | CAN bus connector |
| 7 | E/A | CAN bus low | CAN bus connector |
| 8 | - | Not occupied | |
| 9 | E | Supply, terminal 30G | Fuse F131 up to 2009 08 |
| 9 | E | Supply, terminal 30 | Fuse F134 from 2009 09 |
| 10 | - | Not occupied | |
| 11 | - | Not occupied | |
| 12 | - | Not occupied | |
| 13 | - | Not occupied | |
| 14 | E | Signal Gearshift paddles | Steering column switch cluster |
| 15 | - | Not occupied | |
| 16 | - | Not occupied | |
| 17 | E | Not occupied | |
| 18 | M | Ground | Ground point |
