61 31 208 Removing and installing/replacing switch for front lumbar support

Necessary preliminary tasks:

• Remove outer cover on front seat  . See 52 13 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT BACKRE or 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)

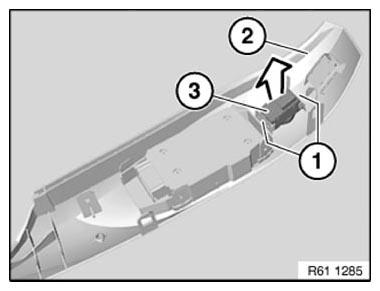

Expand catches (1) of cover (2), unclip switch for front lumbar support (3) in direction of arrow and remove.

Fig 1: Removing Front Lumbar Support Switch

Courtesy of BMW OF NORTH AMERICA, INC.
