61 13... In-line plugs, 6- to 50-pin, System Elo

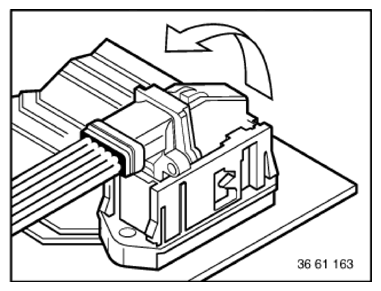

Unlock lock.

Fig 1: Opening Connector Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable strap.

Installation:

Cable clip must be reinstalled.

Fig 2: Locating Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

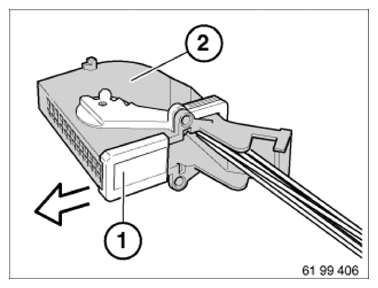

Detach catch (1) from plug housing (2).

Fig 3: Detaching Catch From Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

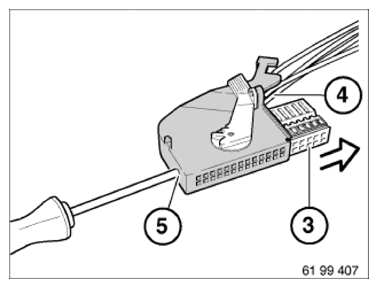

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Pressing Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

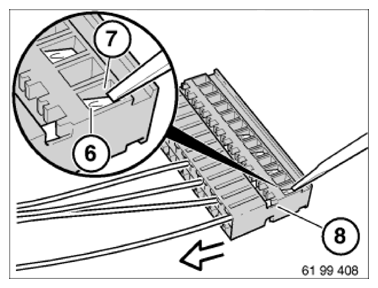

Hold down arrester hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Pulling Secondary Lock Cable

Courtesy of BMW OF NORTH AMERICA, INC.

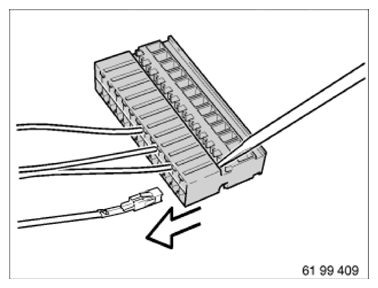

Hold down arrester hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Pulling Cable From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
