61 13... Inline plugs, 6-, 8- pin, System MQS

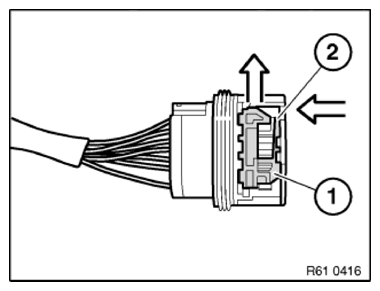

Press lock (1) in direction of arrow and slide plug forward.

Fig 1: Pressing Connector Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking hook (2) downward and slide lock (1) out.

Fig 2: Pressing Connector Locking Hook

Courtesy of BMW OF NORTH AMERICA, INC.

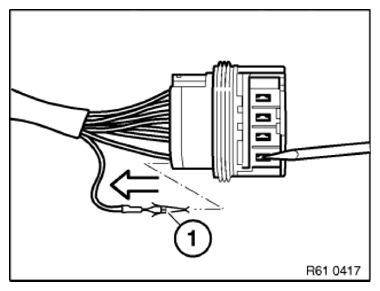

Press down arrester hook (1) with screwdriver and pull out cable with contact towards rear.

Fig 3: Pressing Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
