61 13... Round connector, 13-pin, system D2.5

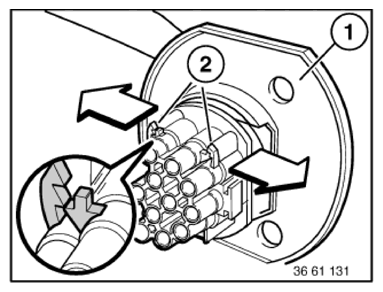

Pull off rubber grommet (1).

Carefully pull out lock (2) in direction of arrow.

Fig 1: Pulling Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

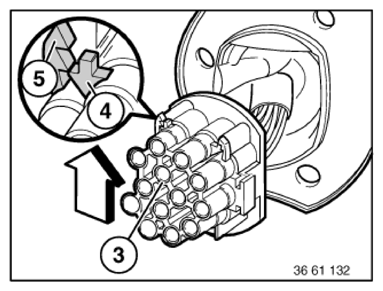

Move connector lower section (3) in direction of arrow until the retaining lugs (4) snap into release groove (5).

Fig 2: Moving Connector Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 132 (press-out tool) press back arrester hook (6) of appropriate contact and pull out the cable.

Fig 3: Pulling Out Lock In Specified Direction

Courtesy of BMW OF NORTH AMERICA, INC.
