61 13... Crimping stop parts

Special tools required:

12 1 080
12 1 081
12 1 083

Crimping contact sleeves for 4 mm ² comb connectors and ignition cable contacts:

Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm² contact sleeves for comb connectors.

12 1 081 (hand pliers)
12 1 083 (nest)

See repair instructions:

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

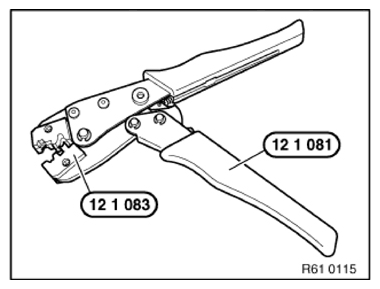

Fig 1: Identifying Hand Pliers And Nest

Courtesy of BMW OF NORTH AMERICA, INC.

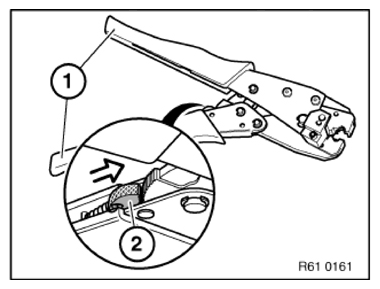

Release special tool 12 1 081:

Squeeze grips (1) lightly and push release lever (2) in direction of arrow.

Or:

Compress handles until limit position, hand pliers unlock automatically.

Fig 2: Releasing Lever

Courtesy of BMW OF NORTH AMERICA, INC.

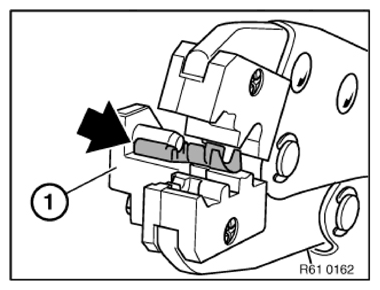

Place 4 mm² contact sleeve in nest with anti-twist safeguard (1) as far as possible.

Fig 3: Locating Anti-Twist Safeguard

Courtesy of BMW OF NORTH AMERICA, INC.

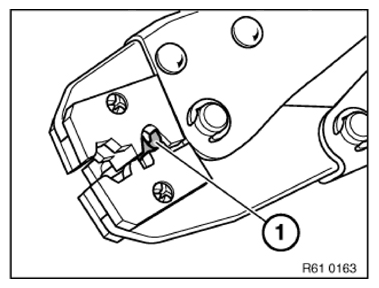

Preload contact by squeezing matrix in crimping tool.

Grip contact (1) firmly only, do not crimp.

Fig 4: Gripping Contact

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

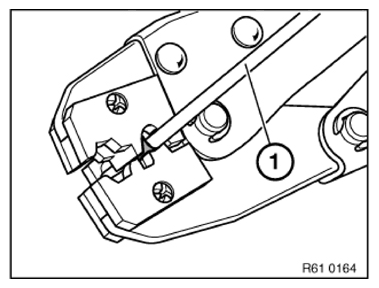

Insert stripped end of wire (1) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

Compress crimping tool to limit position.

Crimping tool unlocks automatically.

Take contact out of crimping tool.

Fig 5: Crimping Contact Onto Stripped End Of Wire

Courtesy of BMW OF NORTH AMERICA, INC.

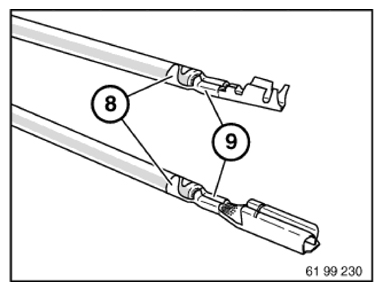

4. Checking crimping

Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

NOTE: Illustration shows butt connectors and contact sleeves for comb connectors knocked on one side. The crimping procedure is identical here.

Fig 6: Checking Insulation Crimping And Wire Crimp

Courtesy of BMW OF NORTH AMERICA, INC.

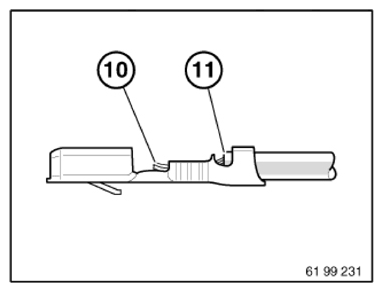

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

Fig 7: Identifying Conductor End And Insulation End

Courtesy of BMW OF NORTH AMERICA, INC.

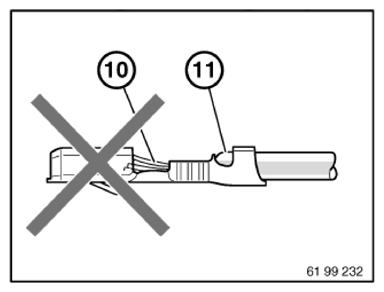

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Fig 8: Identifying Incorrect Crimping (Inserted Too Far)

Courtesy of BMW OF NORTH AMERICA, INC.

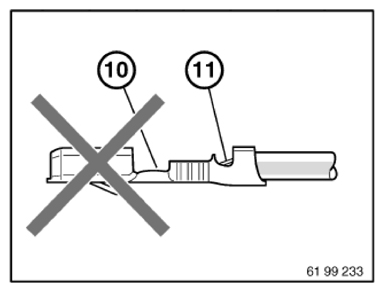

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.

Fig 9: Identifying Incorrect Crimping (Not Inserted Far Enough)

Courtesy of BMW OF NORTH AMERICA, INC.
