61 31 009 Repairing steering column switch cluster (SZL)

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Note on ordering:

IMPORTANT: Extreme cleanliness is required!

NOTE: Installation is described separately.

Removal

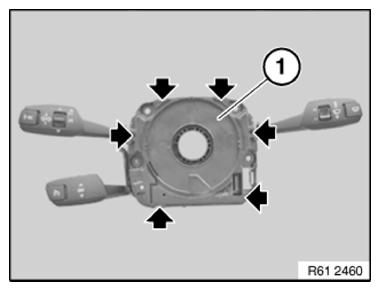

Unlock retaining lugs on upper housing section (1) with a suitable tool.
Remove upper housing section.

Fig 1: Locating Retaining Lugs
Courtesy of BMW OF NORTH AMERICA, INC.

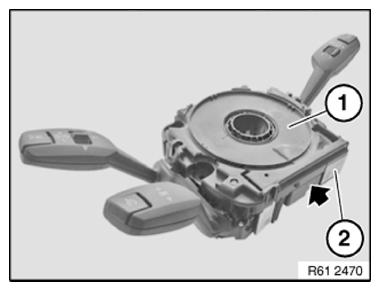

Release screws (1) in optical element (2).

IMPORTANT: Touch only the optical element.

NOTE: After removal, render optical element unusable and dispose of it in the appropriate manner.

Fig 2: Identifying Screws And Optical Element

Courtesy of BMW OF NORTH AMERICA, INC.

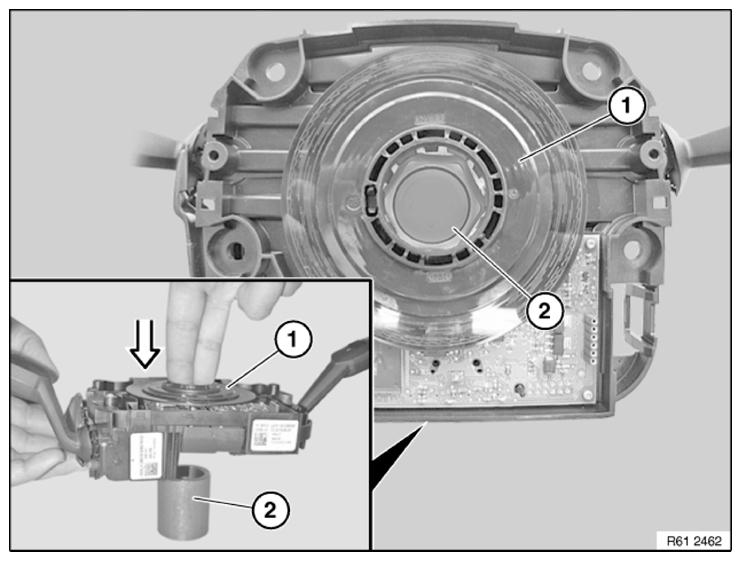

Unclip encoded disc (1) from rear of steering column switch cluster with plastic tube (2) supplied for the purpose.

Fig 3: Identifying Encoded Disc And Plastic Tube

Courtesy of BMW OF NORTH AMERICA, INC.

In this process, hold encoded disc by inserting two fingers in the hole.

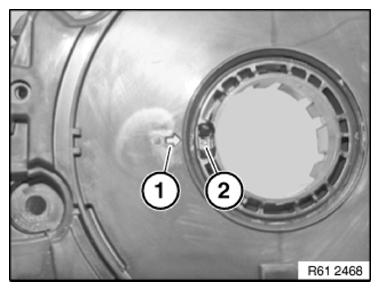

To prevent damage, tilt encoded disc (1) away from the printed circuit board when removing.

IMPORTANT: It is not permissible to clean the bearing points.

IMPORTANT: Make sure that encoded disc, optical element and printed circuit board do not come into contact with grease.

Fig 4: Removing Encoded Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Apply grease supplied for the purpose to friction face (1) of bearing race of front of steering column switch cluster.

Fig 5: Identifying Friction Face Of Bearing Race

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

IMPORTANT: Thoroughly clean your hands before installation.
Before installing the new parts, put on gloves and hair net included in the repair kit!

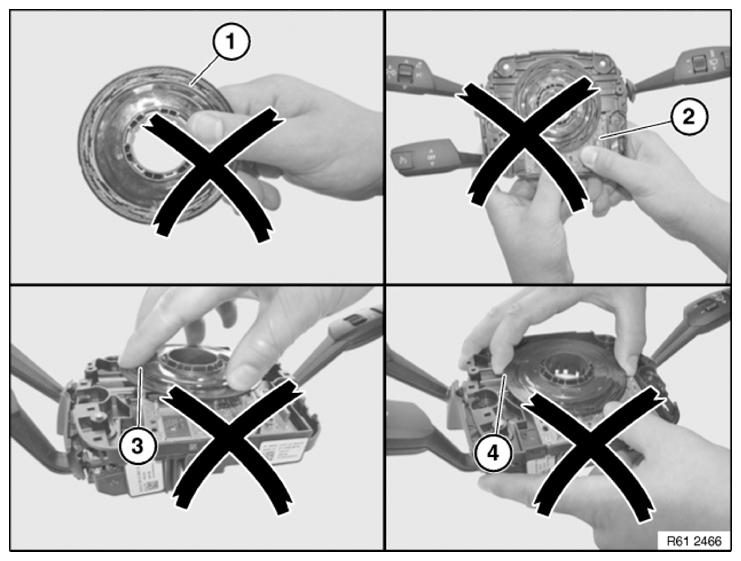

IMPORTANT: Not permitted!

Fig 6: Cautions For Encoded Disc And Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

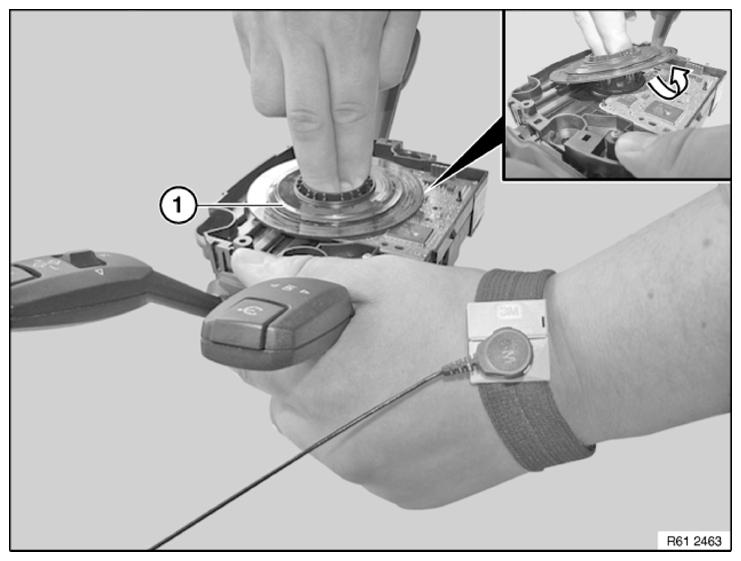

Hold encoded disc (1) by inserting two fingers in the hole.
Position encoded disc centered in fixture and clip it in.

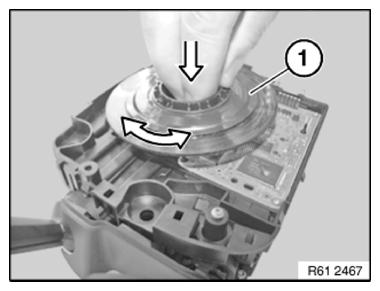

Turn encoded disc to and fro to spread the grease over the friction face

Fig 7: Holding Encoded Disc
Courtesy of BMW OF NORTH AMERICA, INC.

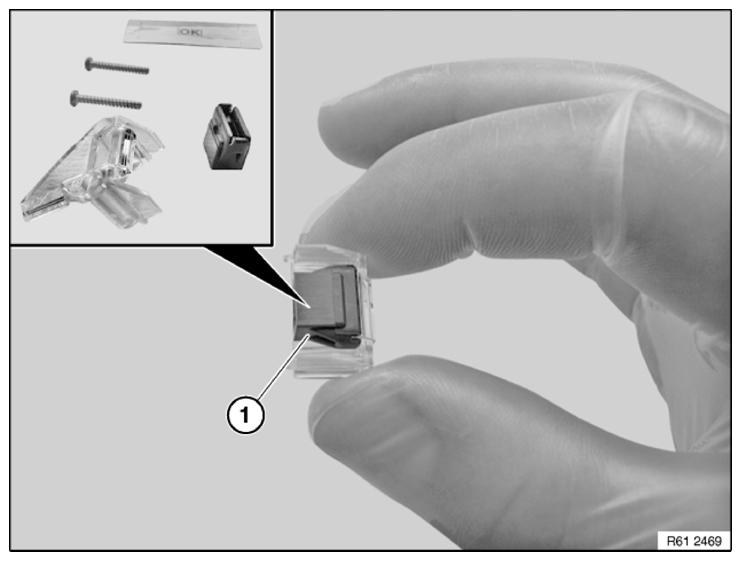

Assemble optical element (1) from individual parts included in the repair kit.

Fig 8: Identifying Optical Element Parts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure optical element (2) with screws (1).
Tightening torque: 0.26 Nm.

Fig 9: Identifying Screws And Optical Element
Courtesy of BMW OF NORTH AMERICA, INC.
Clip upper housing section (1) into place.
After inserting coil spring cassette, affix "CDS" label close to part-number label (2).

Installation note:

Make sure retaining lugs are correctly engaged.

Fig 10: Identifying Upper Housing Section And Part-Number Label

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark (1) and mark (2) must point to each other.

Fig 11: Identifying Alignment Marks

Courtesy of BMW OF NORTH AMERICA, INC.
