51 33... Normalization of power window units
NOTE:
Normalization must be carried out after the following work:
The following functions are deactivated after a denormalization:
- Removal or replacement of power window unit or window glass
- Coding/programming of footwell module (or junction box)
The following functions are deactivated after a denormalization:
- Short-stroke function
- Anti-trapping protection
- Toll closing

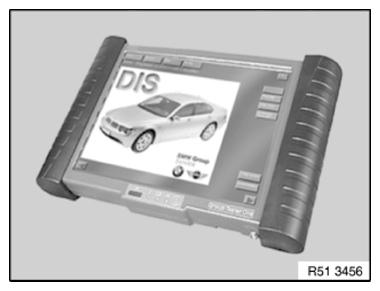

Normalization/denormalization of the power window units is possible via the diagnosis system under the following path:
=> Diagnosis
=> Footwell module (or junction box)
=> Control unit functions
=> Footwell module (or junction box)
=> Component activation
