61 13... Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

Version 1:

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

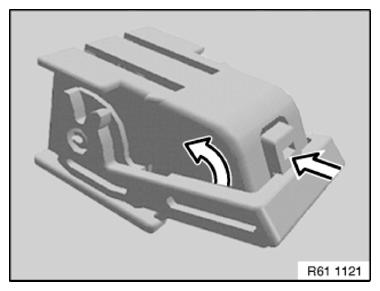

Fig 1: Pressing Lock And Disconnecting Plug Connection

G09863362

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

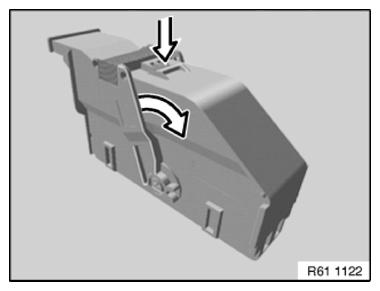

Fig 2: Pressing Lock And Disconnecting Plug Connection

G09863363

Courtesy of BMW OF NORTH AMERICA, INC.

Version 3:

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

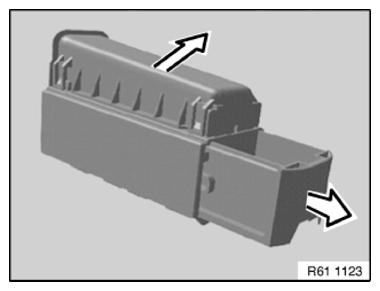

Fig 3: Opening Clip And Disconnecting Plug Connection

G09863364

Courtesy of BMW OF NORTH AMERICA, INC.

Version 4:

Press lock and disconnect plug connection in direction of arrow.

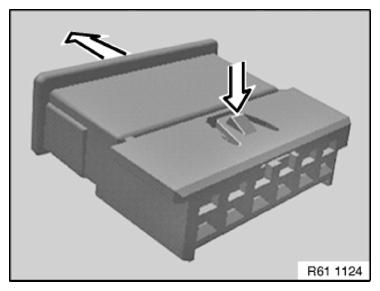

Fig 4: Pressing Lock And Disconnecting Plug Connection

G09863365

Courtesy of BMW OF NORTH AMERICA, INC.

Version 5:

Press lock and disconnect plug connection in direction of arrow.

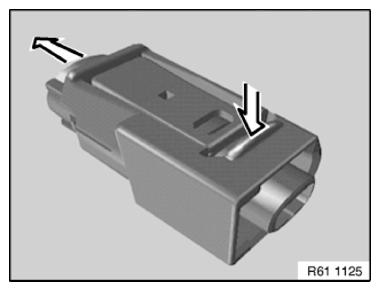

Fig 5: Pressing Lock And Disconnecting Plug Connection

G09863366

Courtesy of BMW OF NORTH AMERICA, INC.

Version 6:

Press lock and disconnect plug connection in direction of arrow.

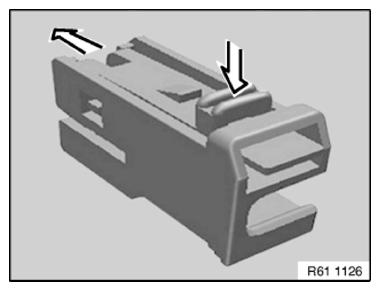

Fig 6: Pressing Lock And Disconnecting Plug Connection

G09863367

Courtesy of BMW OF NORTH AMERICA, INC.

Version 7:

Press lock and disconnect plug connection in direction of arrow.

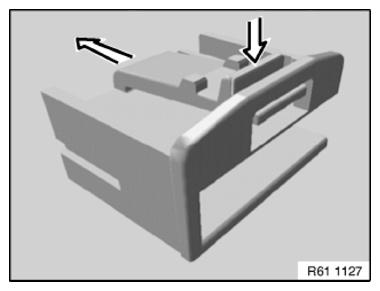

Fig 7: Disconnecting Plug Connection

G09863368

Courtesy of BMW OF NORTH AMERICA, INC.

Version 8:

Press lock and disconnect plug connection in direction of arrow.

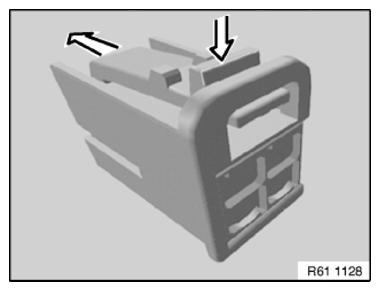

Fig 8: Pressing Lock And Disconnecting Plug Connection

G09863369

Courtesy of BMW OF NORTH AMERICA, INC.

Version 9:

Press lock and disconnect plug connection in direction of arrow.

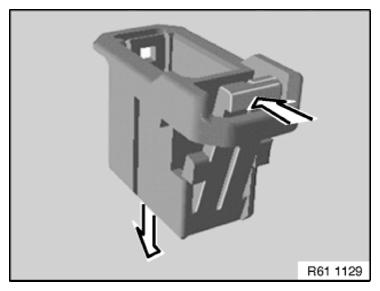

Fig 9: Pressing Lock And Disconnecting Plug Connection

G09863370

Courtesy of BMW OF NORTH AMERICA, INC.

Version 10:

Press the lock and detach plug connection.

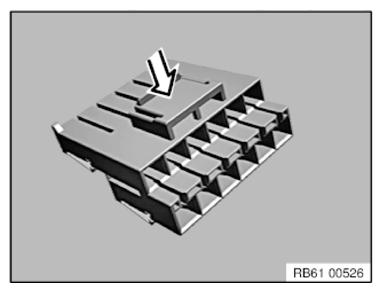

Fig 10: Pressing Lock And Disconnecting Plug Connection

G09863371

Courtesy of BMW OF NORTH AMERICA, INC.

Version 11:

Press the lock and detach plug connection.

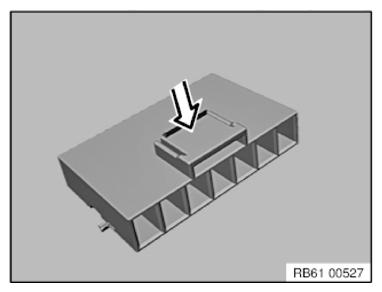

Fig 11: Pressing Lock And Disconnecting Plug Connection

G09863372

Courtesy of BMW OF NORTH AMERICA, INC.

Version 12:

Press the lock on both sides and detach plug connection.

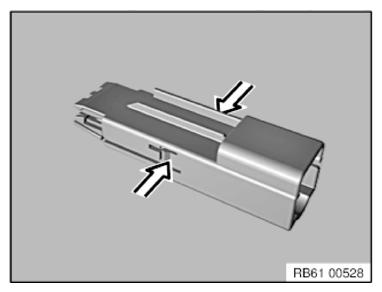

Fig 12: Pressing Lock And Disconnecting Plug Connection

G09863373

Courtesy of BMW OF NORTH AMERICA, INC.

Version 13:

Press the lock and detach plug connection.

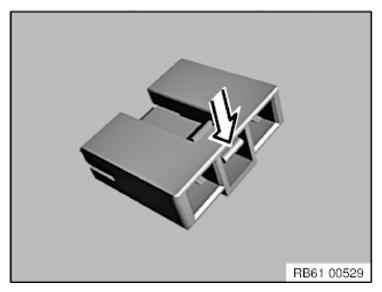

Fig 13: Pressing Lock And Disconnecting Plug Connection

G09863374

Courtesy of BMW OF NORTH AMERICA, INC.
