41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centerpoint of the bore/screw.

Under Body View 1

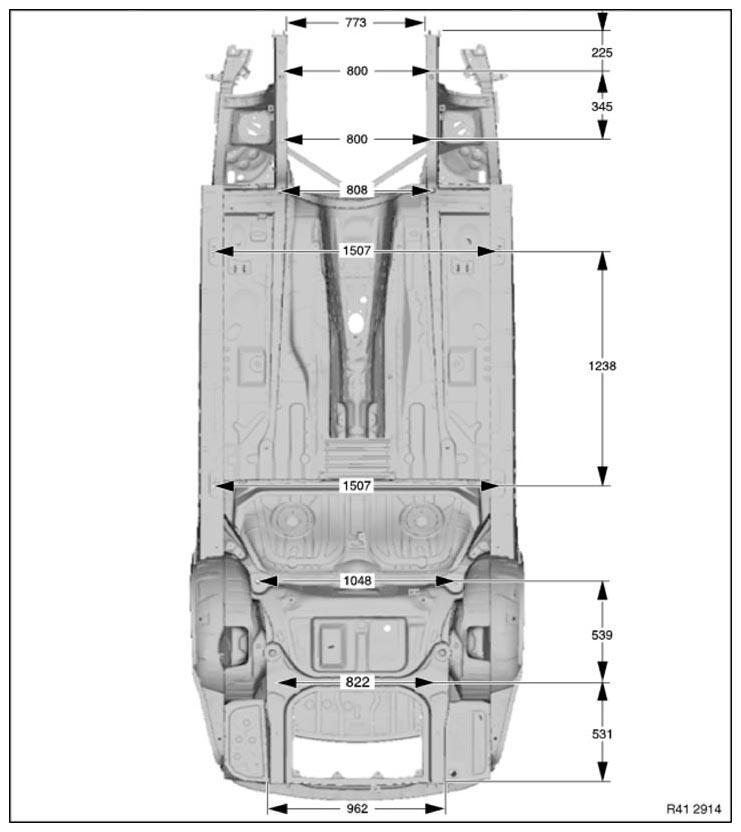

Fig 1: Under Body Frame Alignment Control Dimension And Measurement Points (Under Body View 1)

G09861035

Courtesy of BMW OF NORTH AMERICA, INC.

Under body view 2

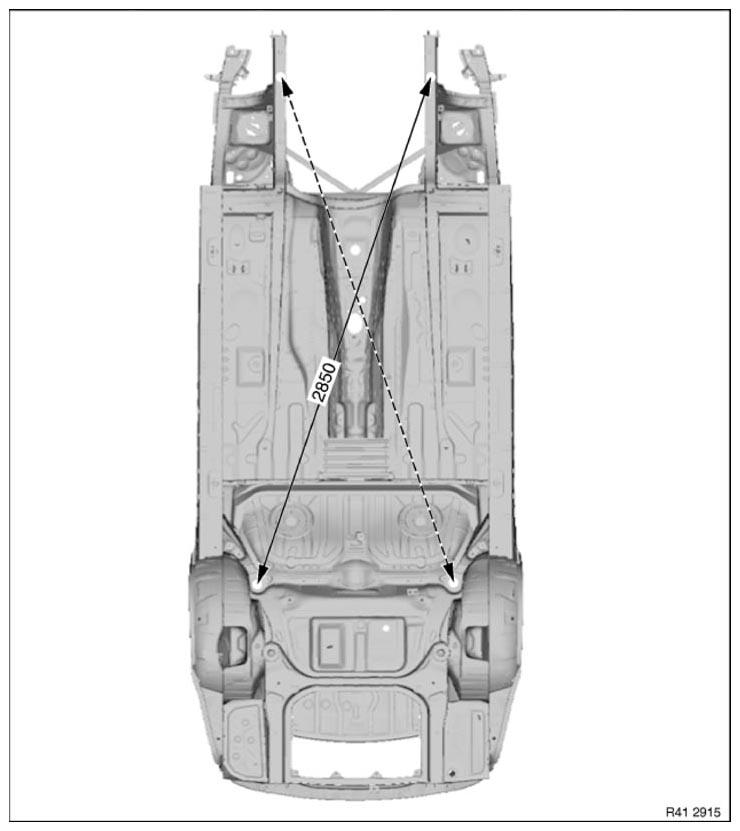

Fig 2: Under Body Frame Alignment Control Dimension And Measurement Points (Under Body View 2)

G09861036

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

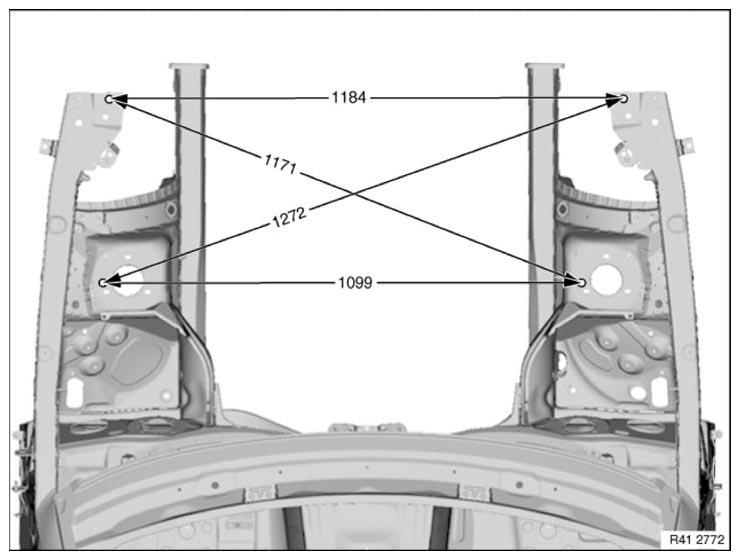

Fig 3: Engine Compartment Under Body Frame Alignment Control Dimension And Measurement Points (Top View, Front End)

G09861037

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

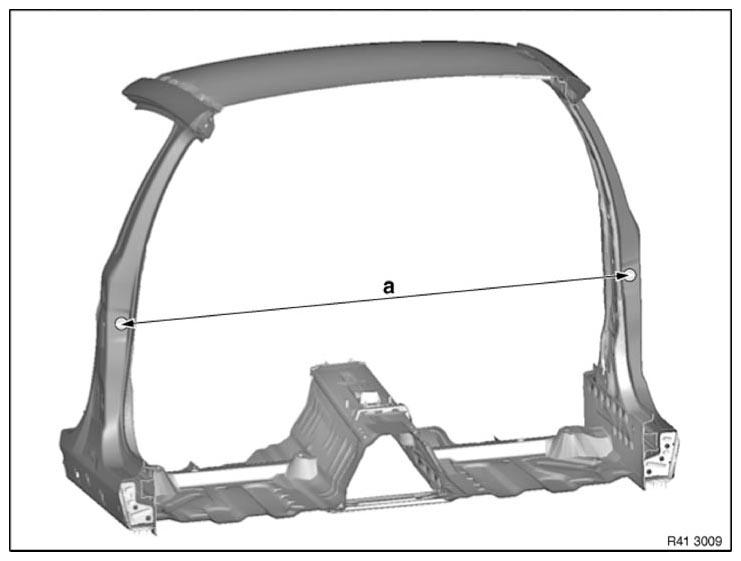

View, B-pillar (Saloon and Touring only)

G09861038

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1551 mm between screw-on points of door brakes.

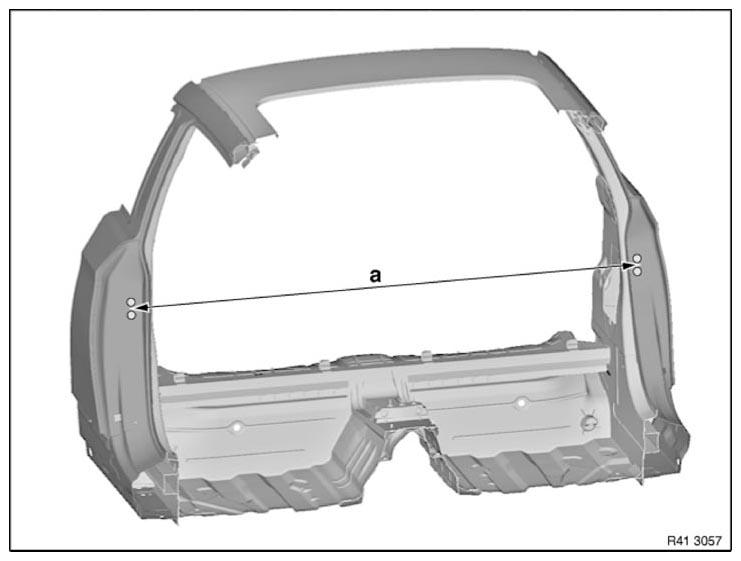

View, B-pillar (Coupe only)

G09861039

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1543 mm between screw-on points of lock strikers.
