41 00... Stamping Vehicle Identification Number

Special tools required:

NOTE: If the stamped vehicle identification number is removed during repair work, it must be stamped in again.
Read and comply with GENERAL NOTES .

Necessary preliminary tasks:

Remove FRONT RIGHT SPRING STRUT .
Remove rubber base from guide plate 41 1 141 .

The set of special tools 41 1 140 for stamping the vehicle identification number consists of:

Guide plate 41 1 141 .

Counter-support plate 41 1 142 .

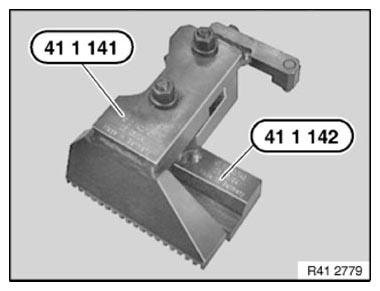

Fig 1: Identifying Guide Plate (41 1 141) And Counter-Support Plate (41 1 142)

G09861109

Courtesy of BMW OF NORTH AMERICA, INC.

Position counter-support plate 41 1 142 at bottom on spring strut dome.

Position guide plate 41 1 141 at top on spring strut dome and tighten screws (1) by hand.

Fig 2: Positioning Counter-Support Plate (41 1 142)

G09861110

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) until counter support 41 1 142 rests on spring strut dome.

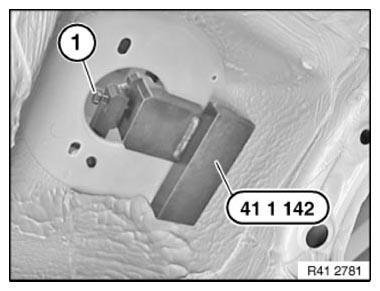

Fig 3: Identifying Counter Support (41 1 142)

G09861111

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

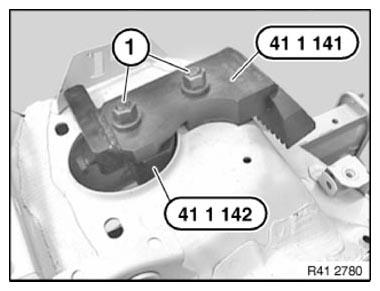

Fig 4: Positioning Counter-Support Plate (41 1 142)

G09861112

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The illustration is a schematic diagram and is to be applied to the relevant vehicle type.

Insert punch numbers 41 0 000 (1) individually into guide plate (2) and stamp vehicle identification number.

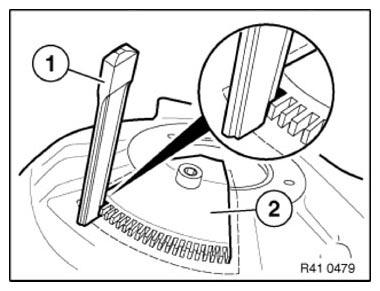

Fig 5: Inserting Punch Into Guide Plate

G09861113

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the event of component or body replacement by the workshops/garages, clearly delimit the vehicle identification number at front and rear by stamping a "+" in place of the BMW emblem.
Note national regulations.
