51 61... Removing and installing/replacing protecting skid/mounting bracket

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Driving without the protective skid/mounting bracket is not permitted!

Necessary preliminary tasks:

Release screws (1).

Tightening torque 51 71 10AZ .

Release screw (3).

Tightening torque 51 71 11AZ .

Release screws (2) and remove protective skid (4).

Tightening torque 51 71 12AZ .

Installation:

Replace all screws.

Middle lug of protective skid must be situated between mounting bracket and left diagonal strut.

Fig 1: Identifying Protective Skid And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting bracket

Gently pull V-struts (1) downwards and remove mounting bracket (2) towards rear.

Installation:

Make sure mounting bracket is correctly positioned.

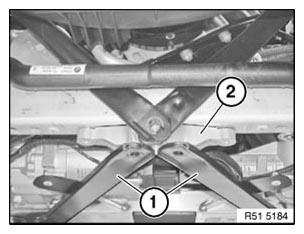

Fig 2: Identifying V-Struts And Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
