Distributed Function Of The Power Window Regulators
The power window regulator function is implemented by a number of control modules. The footwell module actuates the front power windows. The rear power windows, if fitted, are activated through the junction box electronics.

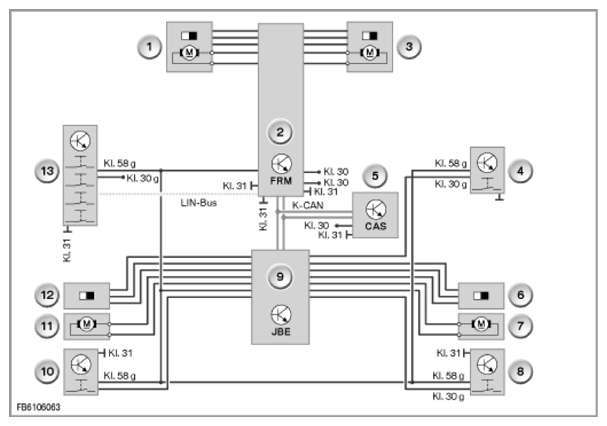

The graphic shows the E70
| Index | Description |
|---|---|
| 1 | Power-window motor, driver's side at front |
| 2 | Footwell module (FRM) |
| 3 | Power windows motor, passenger's side at front |
| 4 | Power windows switch, passenger's side at front |
| 5 | Car Access System (CAS) |
| 6 | Hall sensor for power window, passenger's side at rear |
| 7 | Power windows motor, passenger's side at rear |
| 8 | Rear passenger's side power windows switch |
| 9 | Junction box with junction box electronics (JBE) |
| 10 | Rear driver's side power windows switch |
| 11 | Power windows motor, driver's side at rear |
| 12 | Hall sensor for power window, driver's side at rear |
| 13 | Switch block, driver's door |
The control modules involved communicate via the data buses in the vehicle. The junction box supplies the control modules with voltage.
