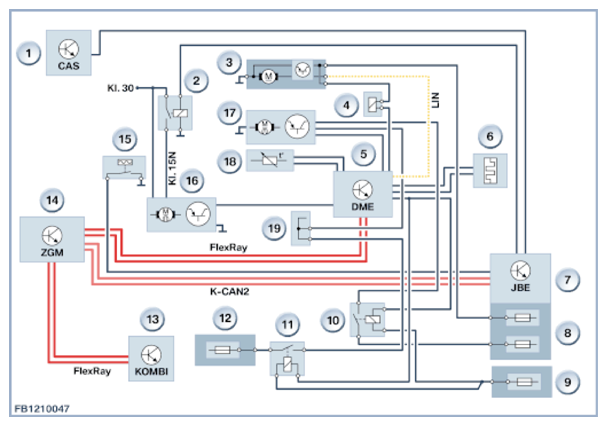

| 1 |
Car Access System (CAS) |
| 2 |
Ignition and injection relay |
| 3 |
Radiator blind drive |
| 4 |
Mechanical radiator shutter drive |
| 5 |
Digital engine electronics (DME) |
| 6 |
Engine ventilation heating |
| 7 |
Junction Box Electronics (JBE) |
| 8 |
Front power distribution box |
| 9 |
Luggage compartment power distribution box |
| 10 |
Relay for electric fan (electric fan 400 Watts or 600 Watts) |
| 11 |
Relay for electric fan (electric fan 850 Watts or 1000 Watts) |
| 12 |
Power distribution box, battery |
| 13 |
Instrument cluster (KOMBI) |
| 14 |
Central gateway module (ZGM) |
| 15 |
Coolant level switch |
| 16 |
Coolant pump |
| 17 |
Electric fan |
| 18 |
Coolant temperature sensor |
| 19 |
Power distribution box, engine compartment |
