Set Oscilloscope Display Crankshaft Sensor

Signal at idle:

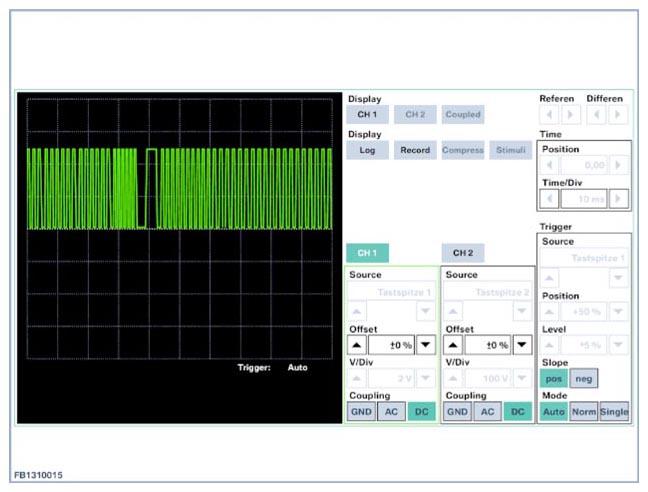

Fig 1: Display - Alternator With Broken Coil Signal Screen (Idle)
G09841639Courtesy of BMW OF NORTH AMERICA, INC.

Signal at starting speed:

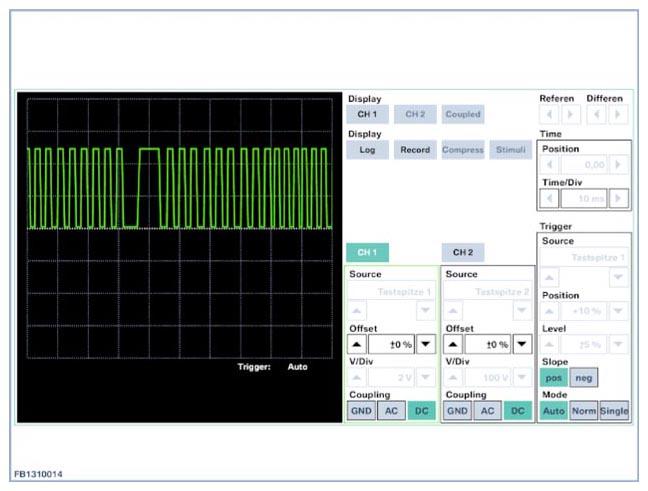

Fig 2: Display - Alternator With Broken Coil Signal Screen (Starting Speed)
G09841640Courtesy of BMW OF NORTH AMERICA, INC.
