Controller (CON)

There are 7 fixed selector keys around the controller (CON). These 7 selector keys now enable selection of half of all the sub-menus.

The following sub-menus can still be selected only from the main menu:

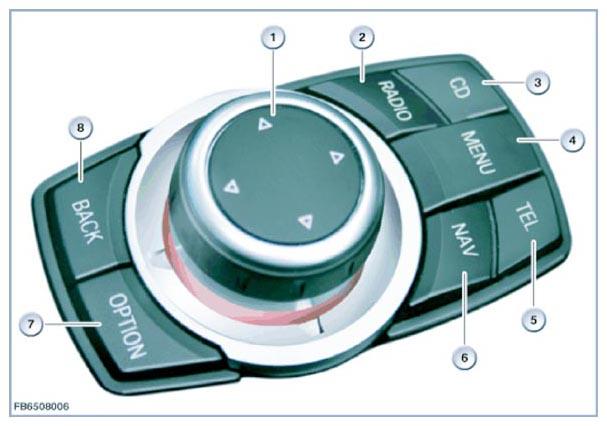

Item Explanation
1 Controller (CON)
2 Radio selector key
3 CD selector key, optional media
4 Main menu selector key
5 Telephone selector key
6 Navigation selector key
7 "Options" selector key
8 "Back" selector key

When pressed, the "Back" button returns the user to the last screen mask.

The "Option" button enables other settings in the last selected sub-menu.
