Folding Central Information Display (CID)

Important! Pay attention to the cable routing on the housing of the CID.

To ensure perfect opening and closing, the mounting must provide correct cable routing.

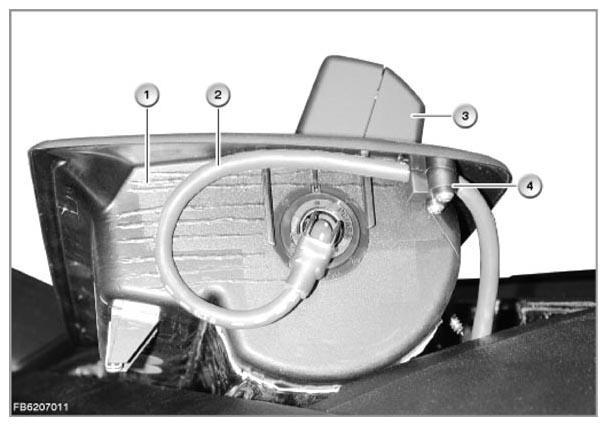

Fig 1: Identifying Central Information Display, Housing, Cable Routing, Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Central Information Display folded out

Index	Explanation
1	Housing
2	Cable routing
3	Central Information Display (CID)
4	Mounting

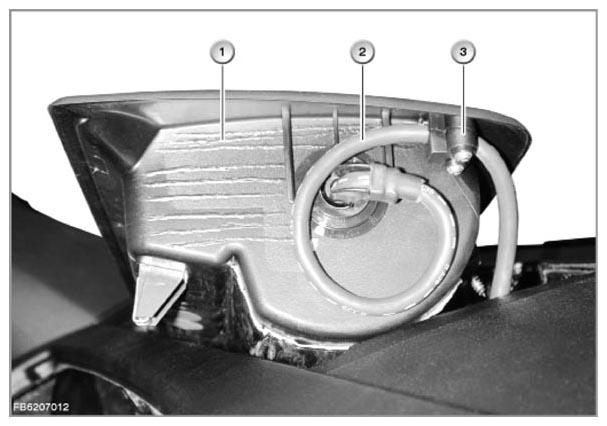

Fig 2: Identifying Housing, Cable Routing, Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Central Information Display folded in
