Signal path RGB signal

For the RGB signal, the picture information is transmitted across three cables separated by color. Red, green and blue. The synchronization of the RGB signal is implemented via the green signal. The signal path has points that are independent of the image shown. These points are used for measurement

For measurement, the following voltage differences must be examined.

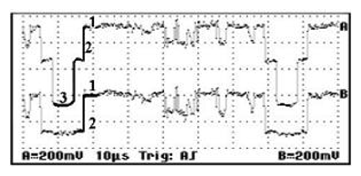

Fig 1: Signal Path RGB Signal Waveform
