Functional networking

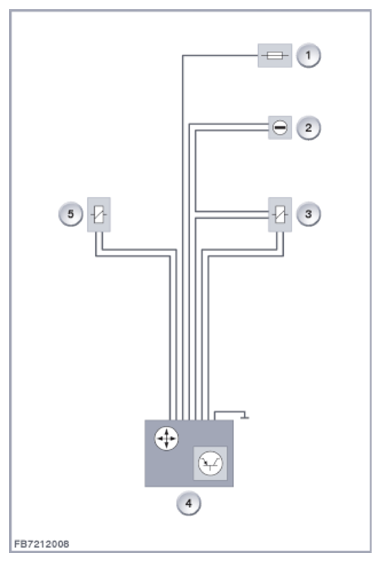

The following graphic illustrates functional networking for the automatic reel system with child seat function.
| Index | Explanation |
|---|---|
| 1 | Power distributor in junction box |
| 2 | Switch for child seat inertia reel |
| 3 | Lifting magnet for passenger side inertia reel |
| 4 | Inertia reel control electronics |
| 5 | Lifting magnet for driver's side inertia reel |
