DME Control Module 4 X60004 Connector End View

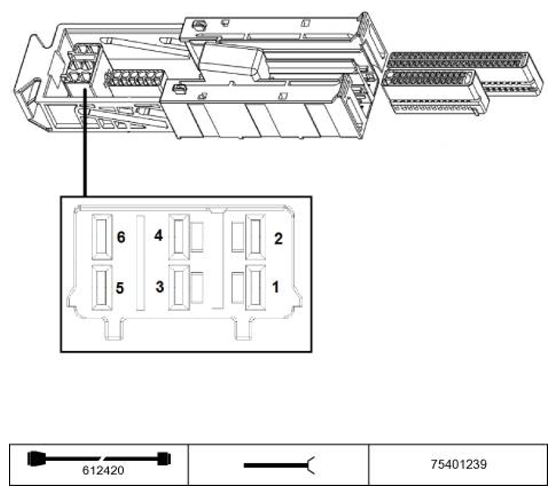

Fig 1: DME Control Module 4 X60004 Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector X60004

Pin	Type	Description /Signal type	Connection /Measuring notes
1	E	Positive supply	VVT relay
2	E	Positive supply	VVT relay
3	A	Activation	Actuator, variable valve timing gear
4	A	Activation	Actuator, variable valve timing gear
5	A	Activation	Actuator, variable valve timing gear
6	A	Activation	Actuator, variable valve timing gear
