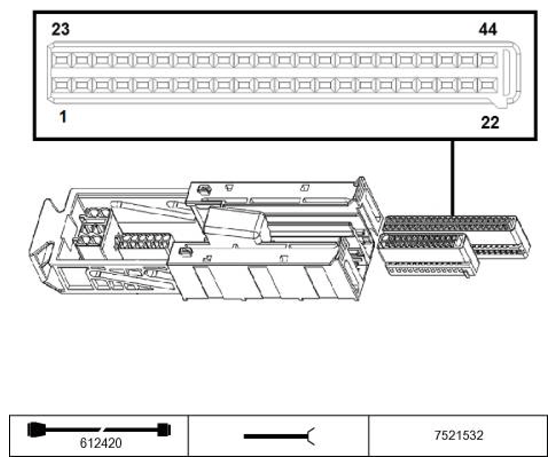

DME Control Module 5 X60005 Connector End View
Pin Assignments At Plug Connector X60005
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | E | Signal | Hot-film air mass meter |
| 5 | M | Negative supply | Engine oil pressure sensor |
| 6 | -- | Not occupied | |
| 7 | A | Positive supply | Engine oil pressure sensor |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | A | Negative activation | Oil pressure control valve |
| 12 | -- | Not occupied | |
| 13 | A | Negative activation | DME main relay Junction box |
| 14 | A | Positive supply | Electric throttle valve actuator |
| 15 | A | Activation Motor-driven throttle actuator | Electric throttle valve actuator |
| 16 | A | Activation Motor-driven throttle actuator | Electric throttle valve actuator |
| 17 | -- | Not occupied | |
| 18 | A | Activation, actuator motor | DISA controller 2 |
| 19 | E | Signal Knock sensor | Double knock sensor |
| 20 | E | Signal Knock sensor 2 | Double knock sensor |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied | |
| 23 | A | Activation | Fuel tank vent valve |
| 24 | -- | Not occupied | |
| 25 | -- | Not occupied | |
| 26 | -- | Not occupied | |
| 27 | M | Negative supply | Hot-film air mass meter |
| 28 | E | Signal Intake air temperature | Hot-film air mass meter |
| 29 | E | Sensor signal | Crankshaft sensor |
| 30 | M | Sensor ground | Crankshaft sensor |
| 31 | A | Positive supply | Intake pipe pressure sensor |
| 32 | M | Sensor ground | Intake pipe pressure sensor |
| 33 | E | Sensor signal | Intake pipe pressure sensor |
| 34 | -- | Not occupied | |
| 35 | E/A | BSD signal | Oil condition sensor Bit-serial data interface (BSD) |
| 36 | E | Signal Throttle valve sensor 2 | Electric throttle valve actuator |
| 37 | E | Signal Throttle valve sensor | Electric throttle valve actuator |
| 38 | M | Negative supply | Electric throttle valve actuator |
| 39 | E | Signal, oil pressure | Engine oil pressure sensor |
| 40 | A | Activation, actuator motor | DISA controller 1 |
| 41 | E | Signal Knock sensor | Double knock sensor |
| 42 | E | Signal Knock sensor 2 | Double knock sensor |
| 43 | -- | Not occupied | |
| 44 | -- | Not occupied |
