32 41... Instructions for using special tool 32 4 000

Special tools required:

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

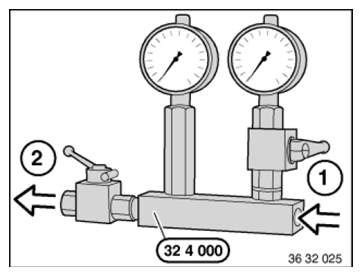

Connection, pump
Connection, steering gear

Fig 1: Connecting Special Tool (32 4 000) At Pump And Steering Gear
Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Mount special tool 32 4 011 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 /32 4 012 to special tool 32 4 000 and connect pressure hose with banjo bolt M14 x 1.5 and 2 sealing rings.

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 banjo bolt

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Mount special tool 32 4 005 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 to special tool 32 4 000 and connect pressure hose with banjo bolt M16 x 1.5 and 2 sealing rings.

Fig 3: Connecting Pressure Hose With Banjo Bolt M16 X 1.5 And Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 retaining screw

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Connect special tool 32 4 004 to pump.

Mount special tool 32 4 006 /32 4 005 to special tool 32 4 000 and connect pressure hose.

Fig 4: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
