24 34... Notes on mechatronics (GA6HP26Z/GA6HP32Z/GA6HP19Z)

Special tools required:

IMPORTANT: After completing repair work:

Load specific data status with the BMW diagnosis system
Check TRANSMISSION OIL LEVEL
Use only approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Unscrew connector (1) and disconnect.

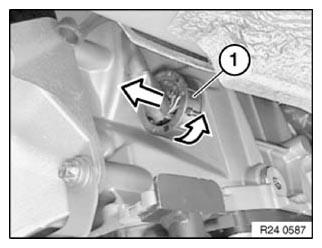

Fig 1: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

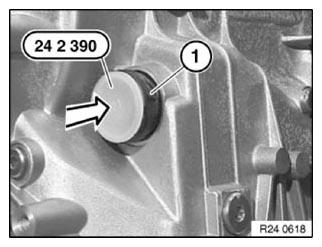

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
