66 54 005 Removing and installing/replacing control unit for Night Vision System: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

Disconnect BATTERY CABLE
Remove FOLD-DOWN COMPARTMENT ON DRIVER'S SIDE

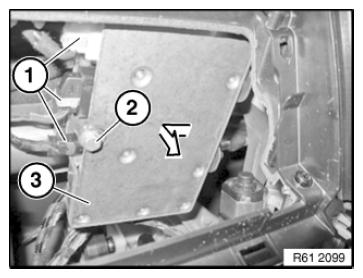

Release plug connections (1) and disconnect.

Release bolt (2) and remove control unit (3) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) on control unit (2) must be seated correctly in the correct bracket.

Fig 2: Identifying Guides And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
