72 14... Removing And Installing/Replacing Top Tether Eyelets For Child Seat

NOTE: Two or three Top Tether eyelets are installed, depending on the model.

Lever out covers (1) and release screws underneath.

Remove Top Tether eyelets (2).

Tightening torque 52 24 3AZ .

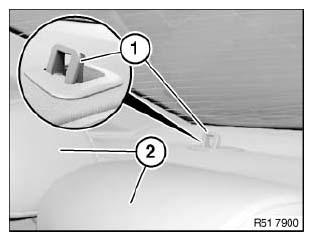

Fig 1: Top Tether Eyelets And Covers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ensure Top Tether eyelets (1) are in correct installation position.
It must be possible for Top Tether eyelets (1) to be tilted in the direction of head restraints (2).

Fig 2: Top Tether Eyelets And Head Restraints

Courtesy of BMW OF NORTH AMERICA, INC.
