Test images, remote key insertion

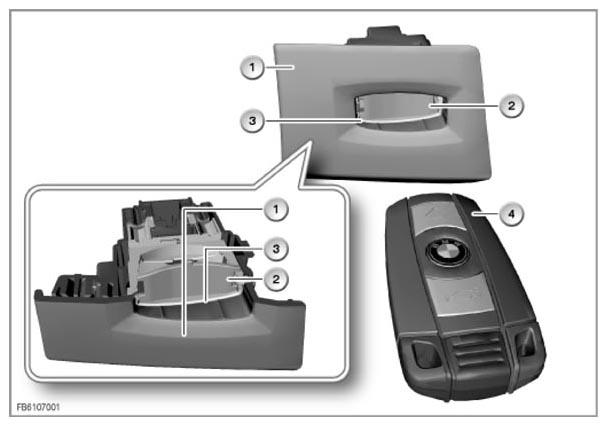

Fig 1: Identifying Remote Key Insertion Slot
G09871625Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Insertion slot cover
2 Sealing flap cover
3 Close sealing flap and plug-in unit so that they are flush.
4 Remote key

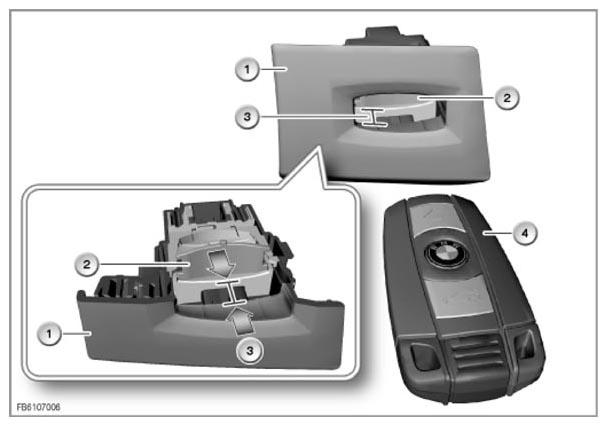

Fig 2: Removing Remote Key Insertion Slot
G09871626Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Insertion slot cover
2 Sealing flap cover
3 Gap between sealing flap and plug-in module
4 Remote key

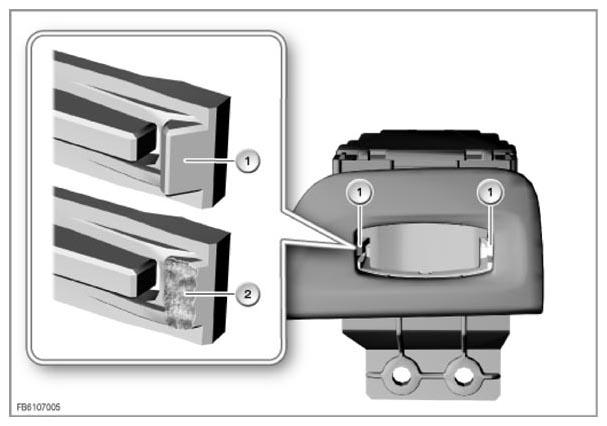

Fig 3: Example Of Insertion Slot Broken Retaining Lug
G09871627Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Undamaged retaining lug
2 Broken retaining lug
