51 14... Instructions For Attaching Number/Letter Designation Combination: Assembly

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a carrier film (2).

IMPORTANT: Adhesive areas must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

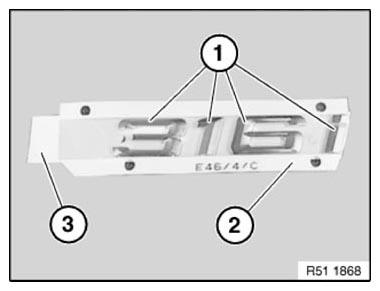

Fig 1: Letter Combinations And Carrier Film

Courtesy of BMW OF NORTH AMERICA, INC.

Remove liner (3) (protective strip for adhesive surface).

Firmly press down model designation.

Remove carrier film (2).
