Initial fitting

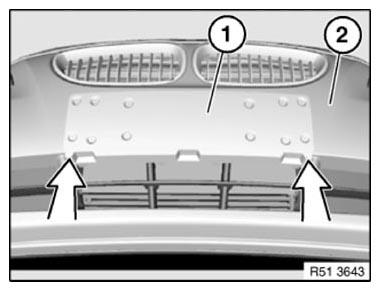

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 1: Placing Drilling Hole Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

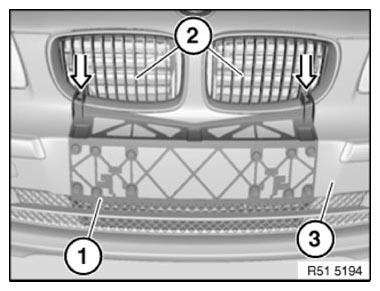

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 2: Placing Drilling Hole Template On Radiator Grille And Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
