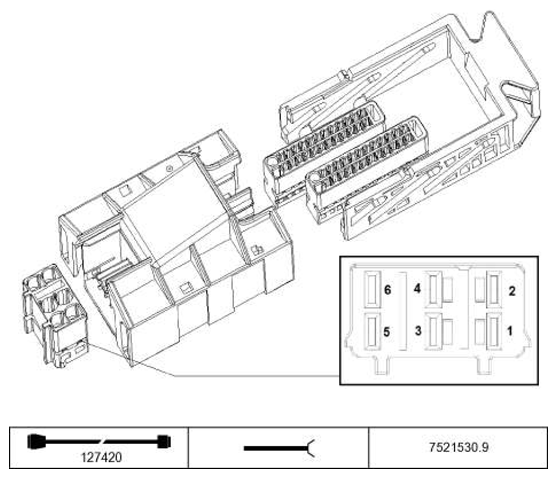

A6000 DME Control Module, Module 3 SX60103A Connector End View
Pin Assignments At Plug Connector X60103
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | up to 2007_08 Supply, terminal 30 | Fuse F50 |
| 1 | E | from 2007_09 Supply, terminal 30 | Fuse F4 |
| 2 | E | up to 2007_08 Supply, terminal 87 | Fuse F77 |
| 2 | E | from 2007_09 Supply, terminal 87 | Fuse F39 |
| 3 | -- | Not occupied | |
| 4 | M | Ground | Ground connection X490 |
| 5 | A | Activation Servotronic valve | Servotronic valve |
| 6 | A | Activation Servotronic valve | Servotronic valve |
