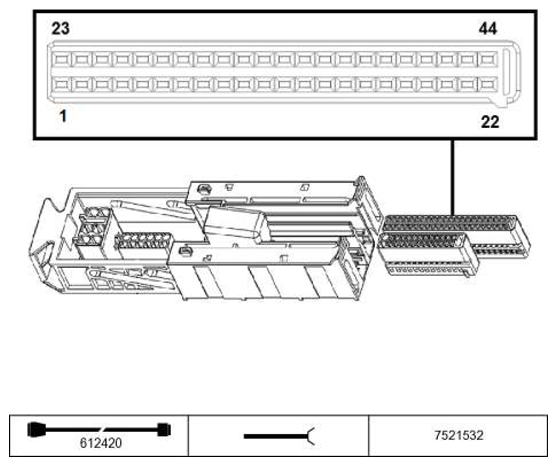

A6000 DME Control Module, Module 5 SX60105A Connector End View
Pin Assignments At Plug Connector X60105
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, oxygen sensor heating | Oxygen sensor before catalytic converter |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 5 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 6 | M | Sensor ground | Oxygen sensor before catalytic converter |
| 7 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 8 | M | Sensor ground | Ground connector |
| 9 | E | Signal ATF temperature sensor | ATF temperature sensor |
| 10 | E | Signal, intake air temperature | Intake air temperature sensor |
| 11 | -- | Not occupied | |
| 12 | E | Signal, intake pipe pressure sensor | Intake pipe pressure sensor |
| 13 | A | Activation, DME relay | Junction box |
| 14 | A | 5 V supply | Throttle valve sensor |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | A | Activation Electric throttle valve actuator | Electric throttle valve actuator |
| 18 | E | Signal, oxygen sensor | Oxygen sensor behind catalytic converter |
| 19 | A | Signal, fuel tank vent valve | Charcoal filter valve |
| 20 | E/A | CAN bus high | Local CAN-bus |
| 21 | E/A | CAN bus high | Local CAN-bus |
| 22 | E | Signal, oxygen sensor | Oxygen sensor behind catalytic converter |
| 23 | E | Signal, oxygen sensor heating | Oxygen sensor 2 before catalytic converter |
| 24 | -- | Not occupied | |
| 25 | -- | Not occupied | |
| 26 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 27 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 28 | M | Negative signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 29 | E | Signal, oxygen sensor | Oxygen sensor 2 before catalytic converter |
| 30 | E | Signal, coolant temperature | Engine coolant temperature sensor |
| 31 | E | Signal, intake pipe pressure sensor | Intake pipe pressure sensor |
| 32 | E | Signal, oil temperature | Rear axle temperature sensor |
| 34 | M | Sensor ground | Ground connector |
| 35 | E/A | BSD signal | Connector X6038 |
| 36 | E | Signal, throttle valve position | Throttle valve sensor 2 |
| 37 | E | Signal, throttle valve position | Throttle valve sensor |
| 38 | M | Sensor ground | Connector, sensor ground |
| 39 | A | Activation Electric throttle valve actuator 2 | Electric throttle valve actuator 2 |
| 40 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
| 42 | E/A | CAN bus low | Local CAN-bus |
| 43 | E/A | CAN bus low | Local CAN-bus |
| 44 | E | Signal, oxygen sensor | Oxygen sensor 2 behind catalytic converter |
