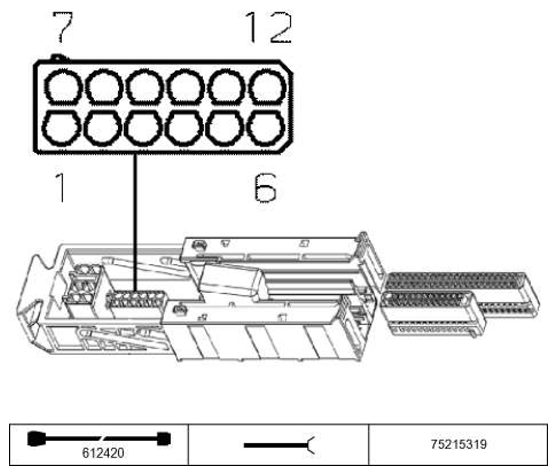

A6000 DME Control Module, Module 6 X60106 Connector End View
Pin Assignments At Plug Connector X60106
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, fuel injector | Fuel injector, cylinder 1 |
| 2 | A | Signal, fuel injector | Fuel injector, cylinder 2 |
| 3 | A | Signal, fuel injector | Fuel injector, cylinder 3 |
| 4 | A | Signal, fuel injector | Fuel injector, cylinder 4 |
| 5 | A | Signal, fuel injector | Fuel injector, cylinder 5 |
| 6 | -- | Not occupied | |
| 7 | A | Signal, fuel injector | Fuel injector, cylinder 6 |
| 8 | A | Signal, fuel injector | Fuel injector, cylinder 7 |
| 9 | A | Signal, fuel injector | Fuel injector, cylinder 8 |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied |
