32 00... General Chassis And Suspension Definitions

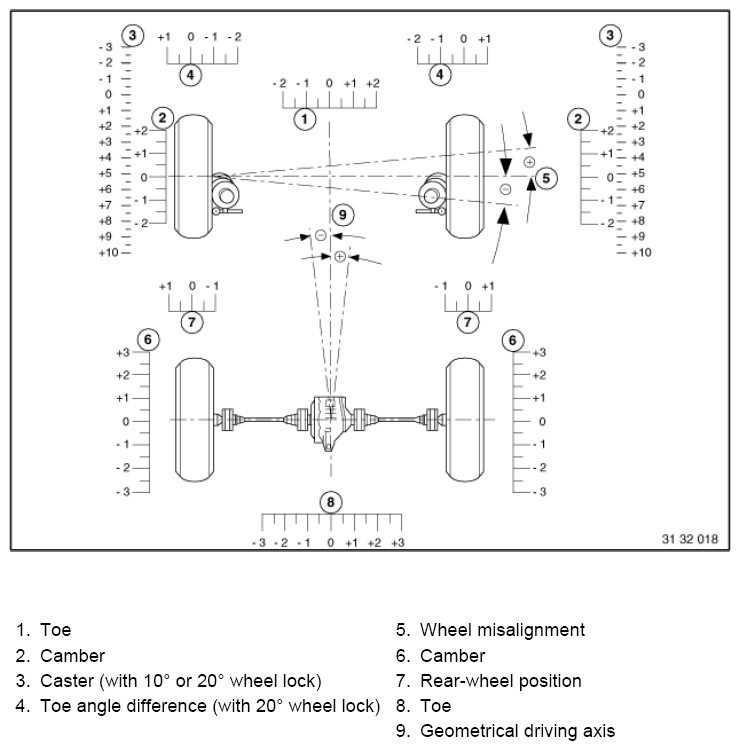

Fig 1: Chassis And Suspension Dimension

G09849194

Courtesy of BMW OF NORTH AMERICA, INC.
