Drive And Output Speed Sensor: Notes
The drive and output speed sensors are Hall sensors. Both sensors are located on the upper timing case. They are connected by means of a wiring harness and a connector with the EGS control module.
Both sensors are supplied by the transmission control with a voltage of 8.3 - 9.3 V.

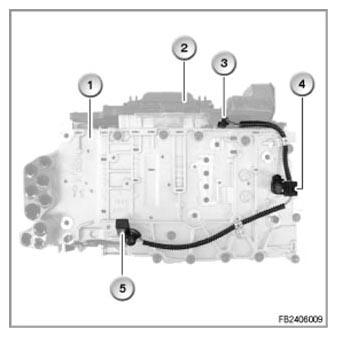

| Index | Explanation |
|---|---|
| 1 | Hydraulic unit (hydraulic selector unit) |
| 2 | Electronic module |
| 3 | Connector |
| 4 | Output speed sensor |
| 5 | Driving speed sensor |
