52 14... Performing Function Check With Adapter Cable (For Seat Repairs)

Special tools required:

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 360 .

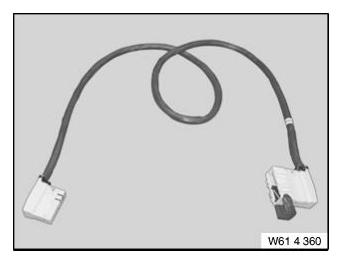

Fig 1: Adapter Cable (61 4 360)

Courtesy of BMW OF NORTH AMERICA, INC.

Use:

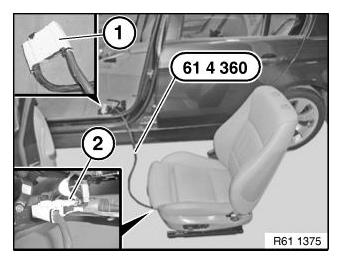

Adapter cable 61 4 360 is connected to vehicle wiring harness (1) and removed seat (2).

Fig 2: Connection Of Adapter Cable With Wiring Harness And Removed Seat

Courtesy of BMW OF NORTH AMERICA, INC.
